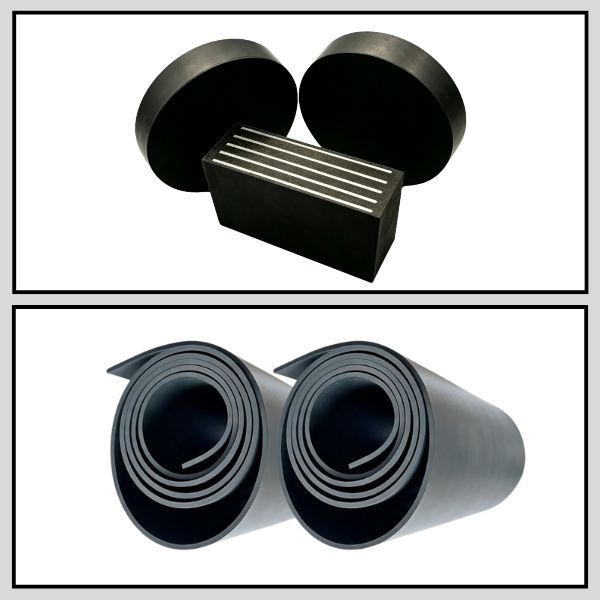

On the pier of a highway bridge crossing a river, a laminated rubber bearing is carrying thousands of tons of load from the deck while allowing the beam to expand and contract freely under the scorching sun and freezing wind. Dozens of kilometers away in an automotive manufacturing plant, an industrial rubber pad sits beneath a stamping press base, absorbing impact vibrations dozens of times per minute. Both are rubber products, yet one works outdoors bearing structural forces and accommodating displacement, while the other operates indoors focusing on vibration damping and protection. The application scenarios of bridge rubber bearings and industrial rubber pads form two distinct trajectories, each serving vastly different yet equally important engineering needs.

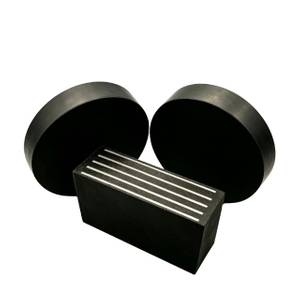

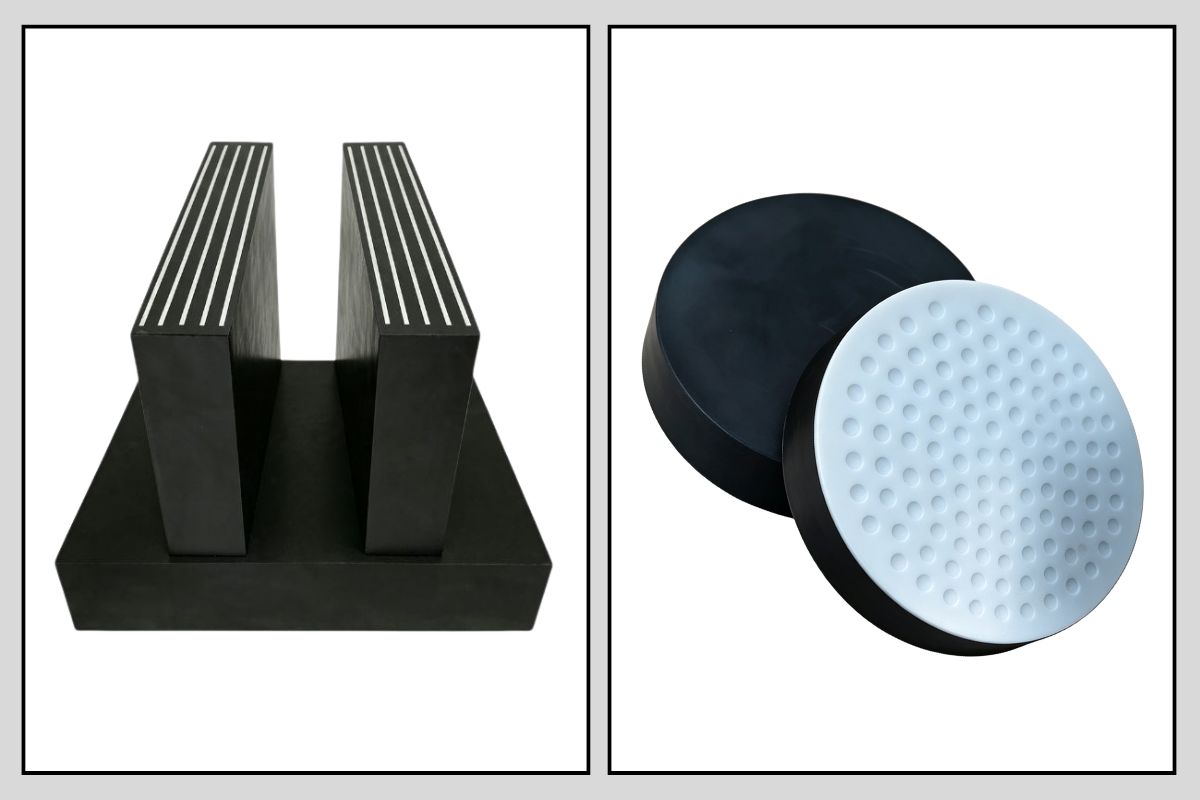

Highway bridges represent the most traditional and widespread application scenario for bridge rubber bearings. In small to medium span simply supported girder bridges, laminated rubber bearings are placed directly on pier pad stones, bearing vertical loads from the superstructure while meeting the horizontal displacement needs of the beam through shear deformation of the rubber layers. For long span continuous girder bridges, rubber bearings with PTFE sliding surfaces can significantly reduce sliding resistance, allowing the beam to expand and contract freely with temperature changes without imposing excessive horizontal thrust on piers. In a provincial highway renovation project involving bearing replacement for dozens of bridges, each bearing must be matched to the original design specifications for highway and railway bridge bearings.
Railway bridges impose more stringent requirements on bearings. The dynamic loads generated by high speed trains and the directional nature of braking forces demand precise calculation of vertical stiffness and horizontal displacement capacity. Bridge bearing pads with steel reinforcement are widely used in such scenarios, with their composite structure of multiple steel layers and rubber achieving high vertical load capacity within relatively modest thickness, while accommodating beam end rotation caused by passing trains. During routine inspections of railway bridges, the compression deformation and rubber aging of bearings are key monitoring indicators.
Coastal areas and high seismic intensity zones represent two special application environments for bridge bearings. Neoprene bridge bearings for coastal bridges, with their salt spray and ozone resistance, offer extended service life in humid, salt laden atmospheres. Elastomeric bridge bearings for long span structures in seismic zones play a critical role in seismic energy dissipation, converting earthquake kinetic energy into heat through the damping properties of rubber and reducing the seismic forces borne by bridge piers. For a sea crossing bridge located in a high intensity seismic zone, bearing selection often needs to address both weather resistance and seismic protection simultaneously.
If the application scenarios of bridge bearings are relatively concentrated, the usage scope of industrial rubber pads is highly dispersed and diversified. From heavy manufacturing workshops to commercial building equipment floors, from logistics warehouses to construction sites, rubber pads for equipment vibration damping are found in nearly all industrial and civil scenarios requiring cushioning, vibration isolation, or load distribution.
The core applications of industrial rubber pads can be grouped into the following categories:

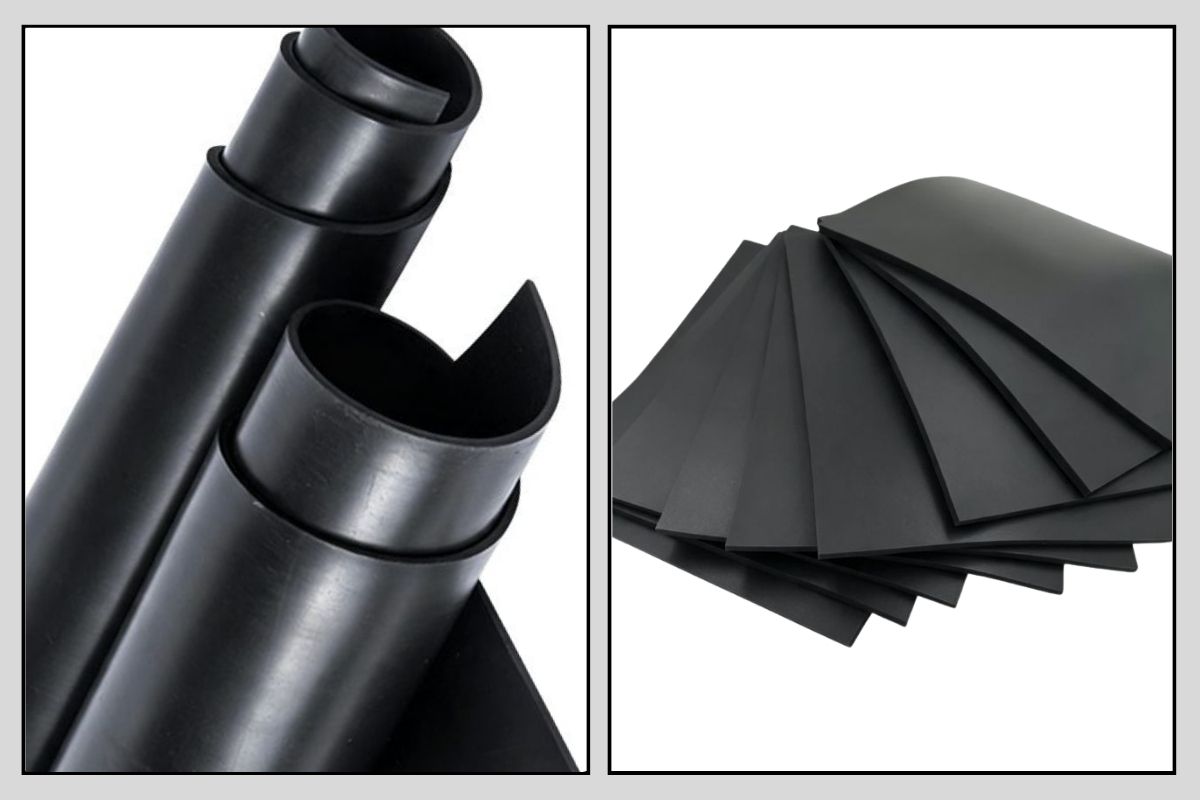

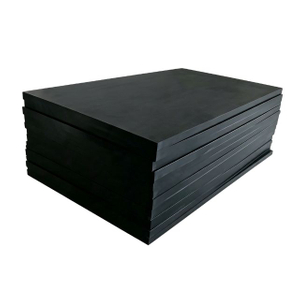

Equipment Vibration Damping and Isolation: This is the most common application direction for industrial rubber pads. Rubber cushion pads for generator bases are installed between generator sets and concrete foundations, absorbing the periodic vibration generated during operation and reducing vibration transmission to the building structure. Rotating machinery such as air compressors, water pumps, and chiller units also require rubber pads with appropriate hardness and thickness at their bases. The higher the vibration frequency and amplitude, the greater the demands on the damping performance and elastic recovery capacity of the pad.
Heavy Impact Cushioning: High impact equipment such as stamping presses, forging machines, and crushers generate enormous instantaneous impact forces during each working stroke. Load distribution rubber pads for heavy machinery can absorb peak energy at the moment of impact, protecting equipment feet and foundation surfaces. In such scenarios, pads typically use higher hardness formulations with relatively increased thickness to meet anti deformation and wear resistance requirements under repeated impact.
Floor and Foundation Protection: At storage rack feet, heavy material pallets, and temporary construction supports, rubber pads primarily serve to protect the floor surface. Rubber pads for warehouse rack protection distribute the concentrated loads transmitted through rack legs, preventing floor indentation or cracking. In building construction, ground protection pads at temporary storage points for precast components also fall into this category. Such applications demand high compressive strength and dimensional stability from the pad.
Anti Slip and Positioning Assistance: Rubber pads with anti slip surface textures can increase the friction coefficient between equipment feet and foundations, restraining minor equipment displacement during operation. This anti slip function is particularly practical for lightweight equipment that requires frequent movement or experiences significant vibration.
When selecting industrial rubber pads, core considerations include equipment weight and vibration characteristics, ambient temperature, humidity and chemical media in the operating environment, as well as coverage area and installation method. Heavy load cushion pads for construction machinery at outdoor sites also need to account for weather resistance, in which case neoprene or EPDM rubber is more suitable than natural rubber.
Although bridge rubber bearings and industrial rubber pads each have their own dedicated application domains, functional overlap or synergistic use does occur in certain special scenarios.
Bridge construction stages represent a typical crossover scenario. During temporary storage and transportation of precast beams, cushion layers are needed between the beam soffit and the ground or transport supports. At this point, industrial rubber pads are used rather than formal bearings. These temporary pads protect the beam concrete surface from damage, and are replaced with permanent bridge structural bearings once the beam is formally lifted into position. During bridge bearing replacement projects, temporary pads are also needed between jack bases and pier top surfaces for load distribution and surface protection.
Small steel trestle bridges and temporary construction bridges represent another crossover application scenario. With relatively short design service life and lower load grades, these temporary structures sometimes use pure rubber blocks as simple bearings rather than standard laminated structural bearings. Although such applications fall outside the typical scope of bridge rubber bearings, real demand exists in engineering practice. Custom rubber bearings for bridge replacement projects combine the structural performance of standard bearings with the customization capability needed to adapt to the geometric dimensions of existing bridges.
In the industrial sector, individual heavy duty scenarios may also draw on the structural concepts of bridge bearings. For example, the foundation vibration damping systems of certain ultra large forging presses adopt laminated structures combining steel plates and rubber to achieve higher load capacity and longer service life. Such designs are functionally closer to industrial vibration damping systems while structurally incorporating technical features of bridge bearings.
From highway bridges spanning rivers to manufacturing workshops operating around the clock, from bridge piers eroded by coastal salt spray to the dense rack bases in warehouse centers, bridge rubber bearings and industrial rubber pads play irreplaceable roles in their respective scenarios. The former relies on a composite structure of steel plates and rubber to bear structural loads and accommodate displacement in outdoor environments. The latter leverages the elasticity and damping properties of pure rubber to construct a cushioning isolation layer between equipment and foundations. Understanding the typical scenarios, environmental conditions, and functional requirements corresponding to each product category is a critical step in selection decisions. Scenarios define needs, and needs define products.
