Types And Application Reference for Bridge Expansion Joints

Bridge expansion joints are a small but very important component of bridge structures. They are installed between beam ends, or between beam ends and abutments, to accommodate expansion, contraction, and rotation caused by temperature changes, concrete shrinkage and creep, vehicle loads, and seismic effects. Without expansion joints, bridges may develop excessive internal stress due to temperature variations, potentially leading to structural damage. With the development of bridge construction technology, the variety of expansion joints has also increased. Different types of expansion joints suit different displacement ranges and application scenarios.

Outline

• Functions and basic requirements of bridge expansion joints

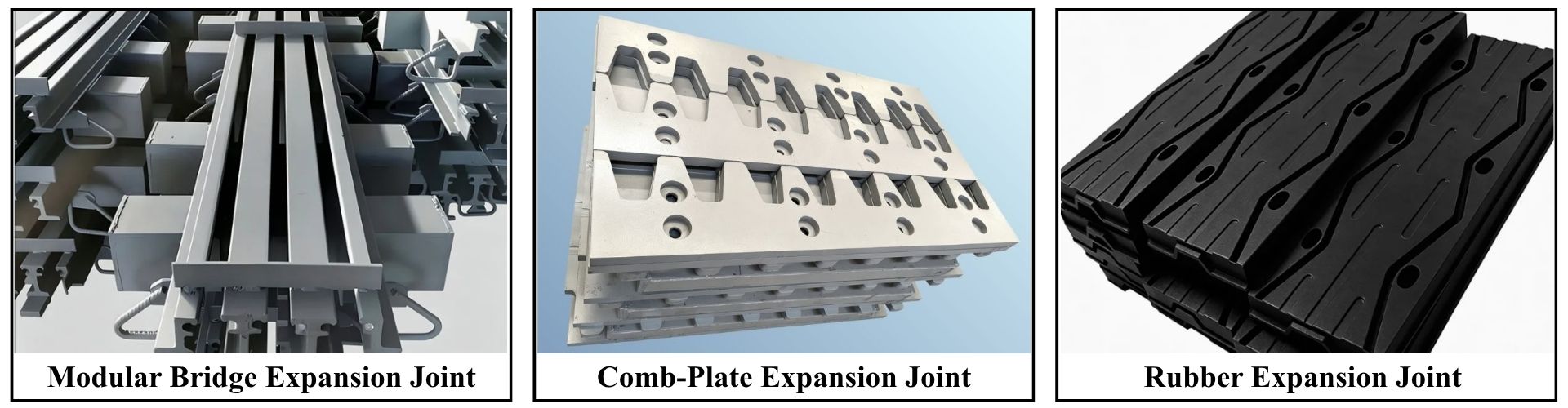

• Modular expansion joints

• Comb-plate expansion joints

• Rubber strip expansion joints

• Reference points for selection

• Maintenance and routine inspection

1.Functions and Basic Requirements

The main functions of bridge expansion joints are to ensure that the bridge can expand and contract freely under temperature changes and other loads, while smoothly transferring loads from the superstructure to the substructure and maintaining ride comfort for vehicles. A good expansion joint device generally needs to meet the following basic requirements:

Displacement accommodation capability: Ability to absorb and accommodate longitudinal, transverse, and vertical displacements and rotations.

Load capacity: Ability to withstand direct vehicle loads with sufficient durability.

Waterproof performance: Effective prevention of rainwater penetration through the deck into the substructure, avoiding corrosion of bearings and piers.

Ride smoothness: The surface of the expansion joint should provide a smooth transition with the deck to reduce vehicle bounce and noise.

Durability and low maintenance: Under normal service conditions, expansion joints should have a relatively long service life without excessive maintenance requirements.

Different types of expansion joints emphasize different aspects of the above performance. Selection should take into account the specific project's displacement requirements, traffic volume, and environmental conditions.

2.Modular Expansion Joints

Modular expansion joints are expansion devices suitable for large displacement ranges in bridges. They typically consist of multiple center beams and support systems, with elastic elements or sliding bearings connecting the center beams to the edge beams. The structure is relatively complex, but the displacement range is large, generally used for long-span bridges or positions with significant displacement requirements.

Main features of modular expansion joints include:

• Relatively large displacement accommodation range to meet various displacement requirements

• Good structural integrity to withstand significant vehicle loads

• Flexible combination design based on actual displacement requirements

• Good deck flatness with relatively high riding comfort

It should be noted that modular expansion joints have a relatively complex structure, requiring higher installation precision and more attention in daily maintenance. In practice, the sealing rubber strips between center beams need periodic inspection and timely replacement if aging or damage is found, to maintain waterproof performance.

3.Comb-Plate Expansion Joints

Comb-plate expansion joints consist of a pair of components with interlocking tooth-shaped plates. The tooth plates are typically made of steel plates, with one side fixed to the beam end and the other side free to slide within reserved slots. The tooth-shaped design allows continuous support during expansion and contraction, so vehicles do not experience obvious gaps when passing over.

Main features of comb-plate expansion joints include:

• Relatively simple structure with small gaps between tooth plates, providing good ride smoothness

• Moderate displacement accommodation capability, suitable for small to medium displacement bridges

• Tooth plate surfaces typically have anti-slip treatment, offering good skid resistance

• Relatively convenient maintenance, with individual replacement of damaged tooth plates

During use, comb-plate expansion joints require attention to debris removal from the tooth gaps to prevent sand or dust accumulation from affecting expansion function. Regular inspection of weld or anchor points for looseness is also an effective measure to extend service life.

4.Rubber Strip Expansion Joints

Rubber strip expansion joints are bridge expansion devices that use rubber material as the primary expansion element. The structure is relatively simple, typically consisting of rubber strips with anchorage components on both sides, relying on the elastic deformation of rubber to accommodate bridge expansion and contraction. Rubber strip expansion joints are suitable for smaller displacement bridges, such as medium and small-span highway bridges and urban bridges.

Main features of rubber strip expansion joints include:

• Simple structure, easy installation, and relatively short construction period

• Good elasticity and sealing properties of rubber material, offering effective waterproofing

• Lightweight with minimal additional load on the bridge structure

• Relatively low cost with good economy

• Low noise during vehicle passage, with less impact on the surrounding environment

It should be noted that rubber materials are affected by UV exposure, ozone, and temperature changes over time, gradually aging. Therefore, after a certain period of use, rubber strips may require replacement. Periodic inspection of the rubber surface for cracks, hardening, or deformation helps determine whether maintenance or replacement is needed.

5.Reference Points for Selection

When selecting bridge expansion joints, the goal is not necessarily to pursue the "best" or "most expensive" product, but to find the most suitable match for the actual project conditions. The following aspects may serve as reference:

Displacement assessment: Estimate the displacement range the expansion joint needs to accommodate based on bridge length, structural type, and local climate temperature differences. For smaller displacement, rubber strip joints or comb-plate joints may suffice; for larger displacement, modular joints are more appropriate.

Traffic loads: Bridges with heavy or high-volume traffic require expansion joints with higher load capacity and durability. Modular and comb-plate joints perform relatively better under heavy load conditions.

Installation space: Different types of expansion joints have varying requirements for the reserved slot dimensions at beam ends. Confirm that the available space meets the installation requirements of the selected product.

Waterproofing requirements: For bridges with high waterproofing requirements (such as those crossing water source protection areas or major roads), types with better sealing performance are recommended; rubber strip joints perform prominently in this aspect.

Maintenance convenience: Consider the difficulty and frequency of maintenance. Rubber strip joints are relatively simple to maintain but may have shorter replacement intervals; modular joints require more maintenance effort but generally have longer service lives.

During the selection process, it is advisable to communicate with experienced technical professionals and provide them with detailed project conditions to receive more targeted recommendations. At the same time, referring to the actual performance of similar projects can also be helpful in making a more suitable choice.

6.Maintenance and Routine Inspection

After bridge expansion joints are put into service, regular inspection and appropriate maintenance help extend their service life and reduce the risk of sudden failures. The following suggestions may serve as reference:

Regular cleaning: Sand, dust, and debris tend to accumulate in the gaps of expansion joints; periodic cleaning helps prevent blockage that could affect expansion function. For comb-plate joints, cleaning between teeth is particularly important.

Check sealing strips: For modular joints and rubber strip joints, the condition of sealing strips directly affects waterproof performance. Timely replacement is necessary if aging, cracking, or detachment is found.

Inspect anchor points: The connection points between expansion joints and bridge structures should be inspected regularly to ensure anchor bolts or welds are not loose or cracked.

Observe ride performance: During routine patrols, pay attention to any abnormal bouncing or noise when vehicles pass over the expansion joint, as this often signals early problems.

Keep inspection records: Document findings and actions taken after each inspection, which is helpful for future tracking and overall condition assessment.

Although regular maintenance requires some time and cost, these efforts are worthwhile compared to the deck repairs or traffic disruptions that may result from expansion joint failure.

Conclusion

Although bridge expansion joints are auxiliary components in bridge engineering, their impact on bridge safety and serviceability should not be overlooked. Modular expansion joints, comb-plate expansion joints, and rubber strip expansion joints each have their own characteristics and suitable applications; no single type fits all bridges. Understanding the differences between types, making reasonable selections based on project conditions, and paying attention to subsequent maintenance and inspection are the basic approaches to ensuring long-term reliable performance of expansion joints.
