Water-Swelling Waterstop Strip: Working Principle, Applications, And Selection Guide

In the field of concrete joint waterproofing, besides traditional PVC or rubber waterstops, the water-swelling waterstop strip is a sealing material based on a unique working principle. It blocks water passageways by expanding in volume upon contact with water, providing an effective waterproofing solution for construction joints, cold joints, and other similar areas.

1. What is a Water-Swelling Waterstop Strip?

A water-swelling waterstop strip is typically a strip-shaped flexible waterproofing material made with water-absorbent polymers such as bentonite or hydrophilic polyurethane as its core. Its core working principle is physical expansion: when the product comes into contact with water or moisture, hydrophilic groups within the material absorb water, causing the strip's volume to expand (the expansion rate can be designed based on the formulation). This generates contact pressure within the concrete joint or reserved groove, creating a tight seal against the substrate, filling and sealing the gap to physically block further water penetration.

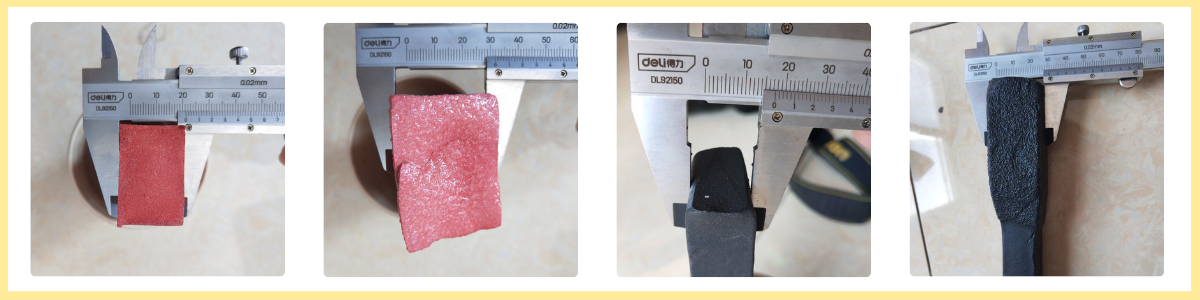

Note:（The images above provide a visual comparison of the preformed product-type and the mastic-type waterstop strips before and after water absorption.）

2.Primary Application Scenarios of Water-Swelling Waterstop Strips

he water-swelling waterstop strip primarily relies on its expansion upon water contact to fill concrete joints and form a seal. Its typical applications span the following engineering fields:

• Underground Engineering
  Suitable for construction joints, movement joints, and cold joints in subway tunnels, underground parking garages, basements, and civil air defense projects, assisting in managing groundwater conditions.

• Water Conservancy Engineering
  Used for sealing joints in concrete structures such as reservoir dams, storage tanks, sewage treatment plants, and culverts.

• Transportation Infrastructure
  Commonly used for waterproofing in areas such as bridge expansion joints and tunnel segment joints.

• Industrial & Civil Construction
  Serves a function in construction joints, around penetrating pipes, and in crack repair in various buildings.

3.Key Product Characteristics and Selection Considerations

The performance of a water-swelling waterstop strip depends on the design and alignment of several core characteristics. The following aspects are typically considered when evaluating such products, and they directly influence their suitability and effectiveness in specific projects.

• Controllable Expansion Performance
  Products can offer different expansion ratios and rates. For instance, delayed-expansion types are designed for joints requiring a longer working time window, while standard types provide a more immediate sealing response. This offers flexibility to match various concrete pouring schedules and water exposure conditions.

• Stable Long-term Efficacy
  In intermittently or permanently damp environments, the product's resistance to hydrolysis and its ability to maintain expanded volume are critical. Selecting a product with a stable formulation and a dense expansion matrix contributes to the durability of the joint seal.

• Adaptability for Convenient Installation
  The installation method correlates with the product form. Mastic types with some plasticity facilitate filling irregular gaps, while preformed products are easy to secure and maintain in precise position before pouring. Appropriate selection and correct installation form the basis for ensuring the product functions as designed.

• Defined Application Boundaries
  These products achieve sealing through expansion pressure and are primarily suitable for concrete joints in static water pressure environments. For dynamic joints with significant shear movement or high water pressure, suitability requires rigorous evaluation based on the specific conditions and product parameters.

4. Conclusion

The water-swelling waterstop strip provides an effective solution for concrete joint waterproofing through its unique water-activated expansion mechanism. Understanding its working principle, confirming its suitability for static joints without long-term dynamic water pressure, and comprehensively considering the project's specific conditions, installation requirements, and performance needs regarding expansion are key to ensuring its successful application and achieving the desired effect. For complex waterproofing projects, consulting professional material suppliers and obtaining detailed technical documentation are important preliminary steps.
