Views: 183 Author: Site Editor Publish Time: 2026-05-26 Origin: Site
When an earthquake strikes, the ground moves violently in multiple directions, generating massive horizontal and vertical forces. These movements can instantly shatter rigid concrete piers, shear support columns, and collapse major bridge spans. To prevent such catastrophes, structural engineers must design bridges and large buildings to withstand immense dynamic energy.
One of the most critical elements in this design is the structural support system. While standard rubber pads work well for everyday thermal expansion in small overpasses, they often fail under the extreme displacement and rotation of a major earthquake. This reality raises an essential question for modern infrastructure developers: Can a spherical bearing resist seismic impact? In this detailed technical guide, we will answer this question by analyzing the mechanics, materials, and real-world performance of the modern spherical bearing. We will explore how its unique curved metal-to-metal interface, advanced sliding polymers, and customizable configurations make it one of the most reliable seismic protection systems available today.
Earthquakes do not just push a structure sideways. They subject bridges, viaducts, and large buildings to complex, multi-directional stress patterns. To understand why a spherical bearing is so vital, we must first look at how seismic energy interacts with large concrete and steel structures.
During a seismic event, the earth vibrates rapidly. This movement creates lateral ground acceleration, which translates into massive inertial forces acting on the bridge deck or building roof.
Shear Force Build-Up: As the foundations of the structure move with the ground, the heavy superstructure tries to remain still due to inertia. This creates extreme horizontal shear forces at the connection points between the piers and the deck.
Torsional and Rotational Stress: Earthquakes rarely move in a single straight line. They generate complex torsional waves that twist the structural spans, forcing the joints to rotate along multiple axes simultaneously.
Vertical Displacement: Strong near-fault earthquakes can also produce sudden vertical accelerations, lifting the structure or slamming it down onto its supports.
Standard support systems, such as elastomeric rubber pads and classic pot bearings, have physical limitations that make them vulnerable to seismic forces.
Elastomer Tearing and Hardening: Elastomeric pads rely on rubber deformation to allow movement. Under violent seismic displacements, the rubber can exceed its shear capacity and tear completely. Additionally, in cold climates, the rubber hardens and loses its flexibility, magnifying the seismic forces transferred to the piers.

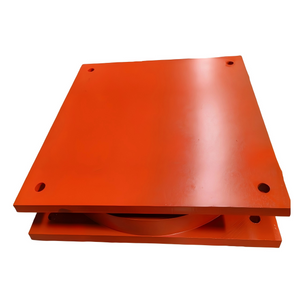

Piston Binding in Pot Bearings: Pot bearings allow rotation through the compression of an internal rubber pad. However, under extreme rotation, the rigid steel piston can bind against the cylinder walls. This binding creates localized stress concentrations that can crack the concrete supporting pedestals.
Lack of Restraint Options: Standard elastomeric pads cannot restrict movement in specific directions. During an earthquake, this lack of control can cause adjacent bridge spans to crash into each other or slide off their supports.

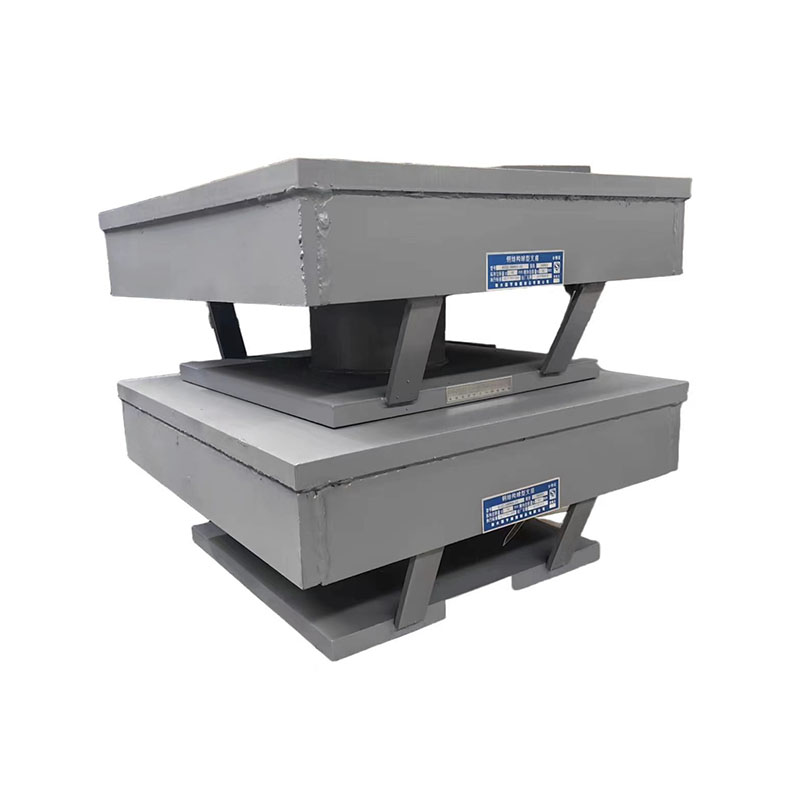

The spherical bearing solves the vulnerability of traditional supports by separating load transmission from rotational movement. It replaces deformable rubber with high-strength curved steel plates and low-friction polymer sheets, allowing it to absorb and release seismic energy safely.
The core seismic benefit of the spherical bearing lies in its low-friction sliding mechanism.
Polished Steel Plate and PTFE: The bearing utilizes highly polished steel plates sliding against advanced polytetrafluoroethylene (PTFE) or modified ultra-high-molecular-weight polyethylene (UHMWPE) sheets.
Low Friction Coefficient: Under standard pressures, this sliding interface maintains a friction coefficient of less than 0.03. During an earthquake, when the ground moves rapidly, the low friction allows the piers to slide smoothly beneath the superstructure.
Decoupling the Superstructure: By letting the foundation slide freely, the bearing decouples the heavy bridge deck from the shaking earth. This minimizes the amount of seismic energy that can travel upward into the main spans, protecting the entire structure from collapsing.
In addition to lateral sliding, a spherical bearing excels at managing the violent multi-axis rotations that occur during seismic shifting.
The Concave-Convex Interface: The bearing features a matching bottom concave plate and a middle convex plate. When a seismic wave twists the bridge deck, the convex plate rotates smoothly inside the concave bowl.
Consistent Rotational Torque: Because the contact surface is spherical, the rotational torque remains incredibly small and consistent, regardless of the rotation angle or the direction of the movement.
Elimination of Edge Pressures: This uniform rotation ensures that vertical loads are always distributed evenly across the supporting concrete pedestals. It prevents edge-concentrated loads, which are a major cause of concrete crumbling during earthquakes.
When implementing seismic protection, engineers need proven, certified components. Hengshui Guoheng Rubber and Plastic Products Co., Ltd. manufactures high-performance spherical bearings designed specifically to meet international standards for extreme seismic zones.
Guoheng Rubber's seismic-grade bearings are engineered and tested to survive severe ground movements.
Magnitude 9 Performance: These specialized bearings are designed to resist seismic impacts in areas fortified for up to Magnitude 9 earthquake intensity. They satisfy strict national and international engineering standards, including GB/T 17955-2019.
Heavy-Duty Forged Steel: We construct the main bearing bodies from premium forged structural steel, giving them the high tensile strength required to withstand both massive vertical loads and sudden lateral shear forces.
Tension-Resistant Designs: In areas prone to vertical seismic acceleration, we can customize the bearings with vertical restraint rings. This allows the spherical bearing to resist upward lifting forces while maintaining full rotational freedom.
A single type of support cannot protect a complex structure. We design complete seismic isolation networks by combining different structural variations of the spherical bearing.
Bidirectional Movable Bearings (SX): These units provide multi-directional sliding performance. During an earthquake, they allow the structure to sway safely in any direction, dispersing seismic energy over a large area.
Unidirectional Movable Bearings (DX): These bearings restrict lateral movement to a single axis while allowing longitudinal sliding. They keep the bridge deck aligned during normal traffic and thermal expansion, but allow controlled sliding along the bridge axis during seismic events.
Fixed Bearings (GD): These units do not allow sliding displacement but offer full rotational freedom. They anchor the structure at key points, preventing the bridge deck from drifting completely off its piers.
Seismic supports must remain fully functional for decades before an earthquake actually occurs. If a bearing degrades, corrodes, or seizes up over time, it will fail to perform when a seismic impact finally strikes.
To ensure the sliding surfaces never stick or jam, we incorporate advanced materials and smart lubrication designs.
Modified Sliding Polymers: Standard PTFE can wear down or stiffen in harsh environments. We use modified polymers like UHMWPE, which offer higher wear resistance and maintain low friction across a wider temperature range.
Dimpled Grease Reservoirs: The polymer sheets feature tiny dimples designed to hold specialized silicone grease. This ensures continuous, reliable lubrication over decades of service, preventing "stick-slip" friction spikes during sudden movements.
Immunity to Aging: Unlike rubber bearings that dry out, crack, and stiffen when exposed to oxygen and UV light, our steel and polymer spherical bearings retain their precise sliding properties indefinitely.
Environmental contaminants are the silent enemies of high-performance sliding interfaces.
Heavy-Duty Rubber Dust Seals: A flexible, weather-resistant rubber skirt wraps around the internal sliding parts. It acts as a tight barrier, keeping out rainwater, sand, road dust, and aggressive de-icing salts.
Polished Stainless Steel Liners: The flat sliding plates utilize highly polished, corrosion-resistant stainless steel. This ensures that even if moisture enters the system, the sliding interface will not rust or pit.
Epoxy and Zinc-Rich Coatings: The external steel parts receive advanced multi-layer paint systems or hot-dip galvanization, preventing rust formation in coastal or highly corrosive industrial environments.
To highlight why the spherical bearing is the preferred choice for high-seismic-intensity areas, we must compare its performance metrics directly against traditional bridge supports.
Traditional rubber supports degrade quickly under environmental exposure and require frequent replacement. A robust steel spherical bearing can easily last the entire 100-year design life of the bridge, surviving multiple seismic events without needing a complete replacement.
During an earthquake, a support must handle extreme combined forces. The table below outlines how the different bearing types compare across key structural and seismic performance metrics.
Performance Metric | Standard Elastomeric Pad | Classic Pot Bearing | Advanced Spherical Bearing |
|---|---|---|---|
Max Vertical Load Capacity | Low to Medium (<5,000 kN) | High (Up to 50,000 kN) | Ultra-High (Up to 100,000+ kN) |
Rotation Mechanism | Elastomer deformation | Elastomer compression | Curved metal-to-metal sliding |
Max Design Rotation Angle | Low (<0.01 rad) | Moderate (Up to 0.015 rad) | Exceptional (0.02 to 0.05+ rad) |
Seismic Displacement Range | Limited (±50 mm) | Moderate (±150 mm) | Large (±300+ mm) |
Working Temperature Range | -20°C to +60°C | -30°C to +60°C | -40°C to +60°C |
Main Failure Risk | Rubber tearing, hardening | Rubber extrusion, piston binding | Slow sliding wear (easily monitored) |
Even the best spherical bearing will fail during an earthquake if it is not installed correctly. Proper positioning, leveling, and grouting are essential to ensure the bearing can slide and rotate exactly as designed.
The installation process requires meticulous attention to detail to ensure the bearing's physical center lines align perfectly with the structural design center lines.
Marking Center Lines: Construction crews must mark the longitudinal and transverse center lines on both the bearing and the concrete pier. These lines must coincide with millimeter precision.
Leveling with Steel Wedges: We use temporary steel wedges placed at the four corners of the lower plate to adjust the level of the bearing, ensuring it sits perfectly flat before grouting.
Locking Temporary Connections: During shipping and positioning, the upper and lower steel plates are locked together with temporary steel plates. This prevents the internal sliding components from shifting during handling.
Once the bearing is positioned, the anchoring system must be permanently secured into the concrete foundations.
Gravity Grouting: We pour non-shrinkage cement mortar or high-strength epoxy mortar into the pre-embedded anchoring holes and under the lower bearing plate. The mortar must fill all voids completely to ensure uniform load transfer.
Removing Temporary Connections: After the concrete beam is poured and cured, and before tensioning any prestressed cables, workers must remove the temporary locking plates. If you leave these plates in place, they will lock the bearing, preventing it from sliding or rotating during a seismic event and causing structural damage.
Installing Dust Covers: Once the temporary connections are removed, we inspect the bearing for any installation damage and immediately install the protective dust covers to seal the internal sliding surfaces.
When managing major infrastructure projects, decision-makers must evaluate the total cost of ownership over the entire lifespan of the structure, rather than just looking at the initial purchase price.
While a spherical bearing has a higher initial cost than a simple rubber pad, its long-term financial benefits are massive.
Zero Post-Earthquake Replacements: Standard rubber bearings often tear during minor earthquakes and must be replaced immediately. A high-strength spherical bearing can survive multiple moderate seismic events without requiring any structural repairs.
No Traffic Closures: Replacing a bridge bearing requires lifting the bridge deck with heavy hydraulic jacks, which forces traffic closures. Avoiding these replacements saves millions of dollars in toll losses, detour construction, and public delays.
Sustainable Infrastructure: Using highly durable materials reduces the consumption of natural rubber and steel over the 100-year life of the bridge, aligning your project with green building and carbon reduction goals.
After a major earthquake, maintenance crews must inspect thousands of support points quickly to determine if a bridge is safe to reopen.
Visual Displacement Indicators: Our bearings feature external metal pointers and scale plates. Inspectors can visually check the displacement and rotation of each bearing from a safe distance, speeding up safety assessments.
Predictable Wear Analysis: Unlike rubber, which can suffer from hidden internal cracking, the wear on a polymer sliding layer is slow, predictable, and easy to measure during routine annual inspections.
Easily Replaceable Components: If an extreme seismic event exceeds the design limits and damages a dust cover or an anchor bolt, our modular design allows crews to replace these individual parts without needing to lift the entire bridge deck.
Economic / Operational Indicator | Standard Rubber Pad | Advanced Spherical Bearing |
|---|---|---|
Average Service Life | 15 to 20 Years | 50 to 100 Years |
Typical Replacement Frequency | 4 to 5 times per century | 0 to 1 time per century |
Post-Earthquake Inspection Time | High (Requires physical testing) | Low (Visual scale reading) |
Maintenance Labor Costs | High (Frequent inspection & repair) | Low (Periodic cleaning & dust seal checks) |
Total 100-Year Lifecycle Cost | High (Due to replacement & closures) | Low (Highly economical long-term investment) |
Bridges and large architectural structures are magnificent achievements of modern engineering. However, their survival in earthquake-prone regions depends entirely on their ability to move safely under pressure. While traditional rubber pads and pot bearings have served the construction industry well for decades, they struggle to meet the extreme rotational and displacement demands of modern, long-span, and high-load designs.
The spherical bearing successfully solves these challenges. By separating load transmission from rotational movement, its curved steel core, low-friction sliding polymer sheets, and robust environmental protections offer unparalleled rotation capacity, superior load distribution, exceptional seismic displacement performance, and outstanding life-cycle economy. By investing in this advanced technology, developers can build safer, more durable, and more sustainable infrastructure for the future.
For engineers, contractors, and project developers seeking world-class structural support solutions, Hengshui Guoheng Rubber and Plastic Products Co., Ltd. is your trusted manufacturing partner. With over 20 years of manufacturing experience, we specialize in producing premium spherical bearings and structural bridge supports that meet the most demanding international engineering standards.
Our engineering team works closely with you to design and manufacture customized bearings tailored to your project’s specific load, rotation, displacement, and environmental needs. Explore our complete catalog of high-performance bridge bearings, seismic isolation systems, and technical support services by visiting Guoheng Rubber. Partner with us to build safer, more resilient structures that stand the test of time.
Yes. When properly designed and manufactured to strict international standards, seismic-grade spherical bearings are fully capable of resisting the extreme horizontal displacements and vertical loads associated with a Magnitude 9 earthquake. They act as isolation joints, decoupling the superstructure from the violent ground movements.
While a fixed type does not allow sliding displacement, it provides exceptional rotational freedom in all directions. During an earthquake, it anchors the structure at a central point, transferring vertical and shear forces safely into the pier while preventing the bridge deck from twisting off its supports. It works in tandem with guided and free-sliding bearings to form a cohesive seismic network.
The sliding interface typically consists of a highly polished stainless steel plate sliding against an advanced low-friction polymer sheet, such as polytetrafluoroethylene (PTFE) or modified ultra-high-molecular-weight polyethylene (UHMWPE). This combination ensures a very low friction coefficient (typically ≤ 0.03) and prevents stick-slip vibrations.
We protect the steel bodies using multi-layer anti-corrosion systems, such as hot-dip galvanization or zinc-rich epoxy paint primers. Additionally, we wrap a heavy-duty, flexible rubber dust seal around the internal sliding parts to prevent corrosive rainwater, sea spray, sand, and road salts from entering the system.
Standard rubber pads stiffen, harden, and can become brittle in freezing temperatures, which drastically reduces their ability to deform and absorb seismic energy. The steel body of a spherical bearing maintains its full structural strength in cold weather, and our advanced sliding polymers are engineered to maintain a low friction coefficient even at temperatures down to -40°C.
