Views: 0 Author: Site Editor Publish Time: 2026-02-09 Origin: Site
Concrete structures are renowned for their durability, yet they possess a critical weakness: the joints. While the slab or wall itself may last a century, the spaces between pours are the first line of defense against fluid migration. A failure in waterstop installation is not merely a nuisance leak; it represents a significant structural integrity risk and a potential liability nightmare for contractors and engineers alike.
Despite the influx of new materials, PVC Waterstop remains the global standard for fluid containment due to its versatility and superior chemical resistance compared to hydrophilic or metal alternatives. However, industry data suggests that nearly 90% of waterstop failures stem from execution errors—such as poor consolidation, bad welds, or displacement—rather than material defects. This guide provides a technical, step-by-step walkthrough covering preparation, split formwork, heat welding, and quality assurance to ensure zero-leak joints.
Zero Lapping Tolerance: PVC waterstop continuity relies entirely on thermal fusion; overlapping is never acceptable.
Positioning is Binary: The profile must be centered exactly (50/50 embedment) to function; deviations reduce the fluid path.
Factory vs. Field: Factory-fabricated intersections (L, T, X shapes) significantly reduce risk compared to complex field miter welding.
Consolidation Matters: Even the best high-grade PVC waterstop will fail if the surrounding concrete has honeycombing or aggregate nesting.
Successful waterproofing begins long before the concrete truck arrives. The preparation phase focuses on ensuring the site conditions are conducive to installation and that the materials delivered meet the rigorous specifications required for the project.
Polyvinyl Chloride (PVC) is a thermoplastic that exhibits "memory." When shipped in tight coils, the material retains that curled shape. If you attempt to install it directly from the roll, the waterstop will fight to curl back, leading to misalignment or displacement during the pour.
To counteract this, crews must unroll the waterstop along the joint line at least 24 hours prior to installation. This relaxation period allows the material to flatten out, ensuring straighter placement and reducing the tension on the securing hog rings.

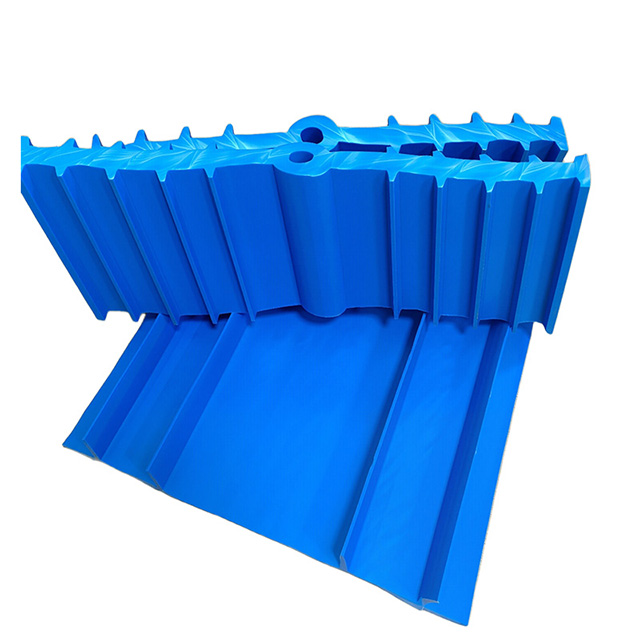

Not all profiles function equally under pressure. Before installation, verify the profile type against the blueprints. Ribbed profiles rely on the tortuous path principle, where the ribs increase the distance water must travel to bypass the joint. Dumbbell profiles are often used where movement is expected but require different consolidation techniques.
Furthermore, visual inspection is critical if the material has been stored outdoors. You must check for Weather Resistance PVC waterstop properties. If the material shows signs of chalking (a white powdery residue) or brittleness, it indicates UV degradation. Such material will likely crack under thermal expansion and should be rejected immediately.
The quality of the raw polymer dictates the longevity of the joint. You should ensure the product is sourced from a reputable PVC Waterstop manufacturer capable of providing mill certificates. These documents must validate the specific gravity and tensile strength of the batch.
Be vigilant for warning signs of low-grade fillers, such as recycled PVC, which often appear as color inconsistencies or surface roughness. High-quality projects demand Anti-aging PVC waterstop performance; inferior materials may pass initial inspection but will degrade rapidly when exposed to groundwater chemicals or biological attack.
Securing the waterstop is the most labor-intensive portion of the installation. The goal is to hold the flexible strip rigidly in space while thousands of pounds of wet concrete are poured around it. If the waterstop moves, the barrier is compromised.
Standard formwork does not work with ribbed waterstops. You cannot drill holes for the waterstop to pass through without destroying the watertight integrity. Instead, you must use a split bulkhead. This involves constructing the formwork in two halves, allowing the waterstop to extend through the center of the joint without damage.
Decision Framework for Split Headers:
| Method | Cost Profile | Labor Intensity | Best Use Case |
|---|---|---|---|
| Saw-Cut Plywood | Low Material Cost | High (Field cutting required) | Small projects or custom irregular shapes. |
| Prefabricated Split Header | Higher Material Cost | Low (Fast installation) | Large linear runs (e.g., dams, tunnels). |
Precision is non-negotiable. The industry standard formula dictates that the embedment depth must typically equal half the waterstop width. For a 6-inch waterstop, 3 inches must be embedded in the first pour, and 3 inches exposed for the second pour.
Beyond simple centering, you must consider the concrete cover. Following insights from industry leaders like BoMetals, ensure the concrete coverage on both the exterior and interior sides is greater than or equal to the embedment depth. If the waterstop is too close to the surface, the coarse aggregate can cause concrete spalling, exposing the joint to immediate leakage.
Gravity and the flow of wet concrete will try to dislodge the profile. Best practice involves using factory-installed grommets or applying hog rings at 12-inch (300mm) intervals along the outermost flange. These rings are then tied to the reinforcing steel with wire.
The "No Nail" Rule: There is an explicit prohibition against nailing through the waterstop body or web to secure it to the form. Every nail hole is a potential leak path that bypasses the ribs. If you must fasten it to wood, use a split batten strip that clamps the flange, but never puncture the material.
Expert Tip - Venting Angle: For horizontal installations, such as slab-to-slab joints, avoid installing the waterstop perfectly flat if possible. Angle the wings slightly upward (15°–30°). This slight gradient allows trapped air to escape from under the ribs during the pour, preventing voids that would otherwise create a path for water migration.
A waterstop system is only as strong as its weakest weld. Unlike other construction materials that can be overlapped, PVC waterstop requires a continuous, monolithic barrier created through thermal fusion.
It is crucial to understand that high-grade PVC waterstop is a thermoplastic material. This means it can be melted, reshaped, and cooled without changing its chemical properties. It must be fused, not glued. Adhesives, silicones, and lapping (overlapping ends) are universally rejected by structural engineers because they do not form a permanent bond capable of withstanding hydrostatic pressure.
Field splicing requires a thermostatically controlled welding iron. The process is precise:
Temperature Control: Preheat the welding iron to approximately 380°F (193°C). If the iron is too cold, the bond will be weak (cold joint). If it is too hot, the PVC will char and become brittle.
Preparation: Square-cut both ends of the waterstop to ensure they match perfectly.
Melting: Place both ends against the iron. Hold them there until a molten bead of PVC, approximately 1/8 inch thick, appears along the entire cross-section of the profile.
Fusion: Remove the iron quickly and push the two molten ends together.
Cooling: Hold the joint under pressure until it reaches ambient temperature. Do not use water to speed up the cooling process, as this creates internal stress fractures.
Field welding straight runs is standard practice, but field welding complex intersections (T-shapes, L-shapes, X-shapes) is risky and time-consuming. It involves miter cutting and multiple welds at difficult angles.
The ROI analysis heavily favors factory fabrications. While the upfront material cost of a pre-manufactured module is higher, it virtually eliminates the risk of joint failure at the most critical points of the structure. Recommendations for critical infrastructure always prioritize buying factory intersections and restricting field crews to simple straight-line butt welds.
Phase 4 explores the interaction between the wet mix and the PVC profile. The physical presence of the waterstop changes how concrete flows, and the placement crew must adjust their technique accordingly.
A common failure mode occurs when concrete is poured aggressively on one side of the joint before the other. The weight of the heavy aggregate flow can fold the flexible PVC wing over against the bulkhead. Once the concrete hardens, the wing is trapped in a folded position, creating a massive void and reducing the effective barrier width.
The solution is to pour concrete on both sides of the waterstop simultaneously or in balanced lifts. This equalizes the pressure and keeps the profile straight.
Thorough vibration is required to ensure "intimate contact" between the cement paste and the PVC Waterstop ribs. If the paste does not fill the spaces between the ribs, water will track through the honeycombing.
However, the vibrator operator must be skilled. Touching the PVC directly with the vibrator head can scar, melt, or displace the material. The vibrator should be lowered vertically near the interface to drive air out but kept at a safe distance to protect the polymer.
Engineers must ensure the maximum aggregate size allows for full consolidation around the dense ribbing of the waterstop profile. If the aggregate is too large (e.g., 1.5 inches) and the rib spacing is tight, the stones will bridge across the ribs, leaving air pockets. A smaller aggregate mix is often specified for the immediate vicinity of the waterstop.
Once the concrete sets, the waterstop is buried forever. QA inspection must happen immediately after installation and welding, but before the pour.
Inspectors should walk the entire length of the installed line. Look for the following defects:
Misalignment: Reject joints where the offset between the two profiles is greater than 1/16 inch (1.5mm).
Charring: Reject welds that are black or dark brown. This indicates burnt polymer, resulting in a brittle joint that will snap under structural movement.
Porosity: Check for pinholes or air bubbles in the weld seam, which serve as immediate leak paths.
For critical infrastructure, visual checks are insufficient. The gold standard for validation is spark testing using a holiday detector. A wire mesh or conductive backing is placed behind the weld, and a high-voltage probe is swept over the seam. If there is any discontinuity or pinhole, the electricity arcs through to the mesh, triggering an audible alarm. This confirms 100% continuity.
On large projects, it is standard protocol to perform destructive testing on sample welds. A "dummy" weld is made by the crew at the start of the day. This sample is then subjected to a field pull test. The weld must maintain at least 80% of the tensile strength of the parent material to pass. If it snaps at the seam, the iron temperature or pressure technique needs adjustment.
Correct installation transforms a commodity plastic strip into a critical structural asset. While the material cost of PVC is low, the cost of failure is astronomical. By strictly adhering to split formwork protocols, enforcing thermal fusion standards, and verifying consolidation, contractors can guarantee a watertight structure.
The Total Cost of Ownership (TCO) argument is clear: the cost of hiring a skilled PVC Waterstop manufacturer or certified installer is a fraction of the cost of epoxy injection repairs for a leaking joint one year later. To mitigate risk, prioritize factory fabrications for all corners and enforce a strict "spark test" regime for all field welds.
A: Standard ribbed PVC waterstop is designed for cast-in-place applications and cannot be installed post-pour. For existing concrete, you must use a "retrofit" system. This typically involves a specialized L-shaped profile anchored mechanically to the existing slab using stainless steel batten bars and chemical epoxy to create a seal against the old concrete before the new section is poured.
A: Color often indicates the grade or specific additives. Black PVC usually contains carbon black, providing natural UV resistance. Blue or white profiles are often used in potable water applications to improve visibility of contaminants. Always check the data sheet for Anti-aging PVC waterstop additives, regardless of color, to ensure longevity.
A: You cannot heat weld PVC to hydrophilic rubber. You must use a transition detail. This usually involves adhering the hydrophilic strip to the side of the PVC profile using a specialized cyanoacrylate adhesive or a manufacturer-approved sealant. Some manufacturers provide hybrid profiles where the hydrophilic element is co-extruded onto the PVC.
A: Most weld failures stem from temperature issues. If the iron was too cold, you created a "cold joint" with no molecular fusion. If the iron was too hot (>400°F), the PVC charred and became brittle. Failure can also occur if the crew did not maintain pressure on the joint while it cooled, allowing the plastic to pull apart before setting.
