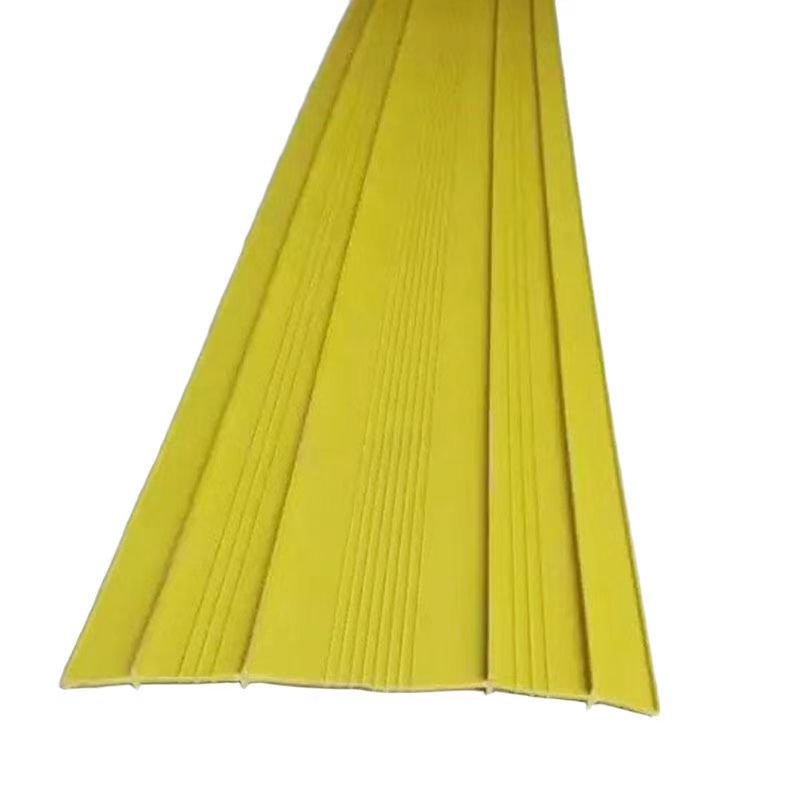

PVC Waterstop

PVC waterstop, whose full name is polyvinyl chloride waterstop, is a type of waterstop product made from high-grade polyvinyl chloride resin and various chemical additives through a series of processes such as mixing, granulation, and extrusion.
PVC waterstop may also have other names in different application scenarios. For example, when used for sealing joints in pipes, walls, or precast concrete components, it may be called a PVC Sealing Strip; in fields such as tunnel engineering, bridge construction, and hydraulic structures, it is referred to as PVC Joint Waterstop.

Quantity:
Availability:





Inquire

Product Advantage

◆◆ Characteristics of PVC Plastic Waterstop:

1. Weather Resistance and Anti-aging Performance: Its service life can reach approximately 50 years under general climatic conditions.

2. Excellent Flexibility: Its performance remains unchanged within the temperature range of -40℃ to 150℃.

3. No Primer Required: It has excellent adhesion to most building materials.

4. Strong Elasticity and Deformation Adaptability: For example, its tensile strength is ≥12MPa, and its elongation at break can reach 300%.

5. Corrosion Resistance: It maintains stable performance in various harsh chemical environments.

6. Convenient Construction: PVC waterstop is easy to install and construct.

7.High Cost Performance: The production cost of PVC waterstop is relatively low, while its performance can meet the waterproofing needs of most projects, having high cost performance.

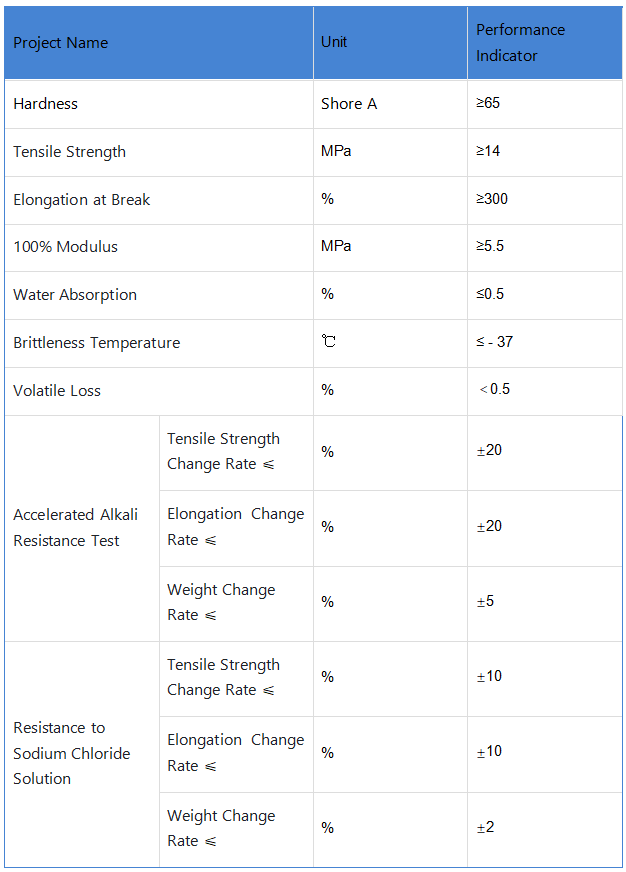

Technical Parameters

Product Uses

◆◆ Specifications and Application Scope of PVC Plastic Waterstop:

Common specifications of PVC plastic waterstop: Type 651, Type 652, Type 653, Type 654, Type 655, Type 831, Type 861, and Flat Type.

Application scope of PVC plastic waterstop:

- Type 651 PVC plastic waterstop: Used in small and medium-sized concrete dams, workshops, tunnels, culverts, open channels, closed channels, etc.

- Type 652 PVC plastic waterstop: Used in small concrete dams, workshops, tunnels, culverts, open channels, closed channels, etc.

- Type 653 PVC plastic waterstop: Used for grout stopping in small structures.

- Type 654 PVC plastic waterstop: Used in large and medium-sized concrete dams.

- Type 655 PVC plastic waterstop: Used in sluice dams, gravity dams, concrete dams, etc.

- Type 831 PVC plastic waterstop: Used in large and medium-sized concrete dams.

- Type 861 PVC plastic waterstop: Used in face rockfill dams.

- Flat Type PVC plastic waterstop: Used in face rockfill dams.

Product Operate Guide

◆◆ Key Points of the Laying Process for PVC Plastic Waterstop at Construction Joints

1. Pre - construction Preparation

Before the start of construction, it is necessary to thoroughly clean the construction site to ensure that the concrete base surface is clean, flat, and free from dust and debris adhesion. At the same time, prepare construction materials such as PVC plastic waterstops, fixing clips, and sealants in advance to ensure that the materials are complete.

2. Waterstop Laying Operation

Lay the waterstop along the direction of the construction joint, and strictly control its straightness to eliminate the situation of twisting. For the waterstop joints, use a hot air gun or an electric soldering iron for welding and bonding operations to ensure that the joints are tightly and firmly sealed and to prevent leakage risks.

3. Requirements for Fixing the Waterstop

Use fixing clips to firmly secure the waterstop on the concrete surface. The spacing between the clips shall be ≤ 500mm, and the clips and the waterstop shall be reliably fixed by welding or bonding. During the fixing process, pay attention to controlling the flatness and verticality of the waterstop to maintain the installation accuracy.

4. Key Points of Concrete Pouring

Conduct concrete pouring after the waterstop is laid. During the pouring process, it is necessary to avoid the direct impact of concrete on the waterstop to prevent the waterstop from being damaged by external forces and affecting the water - stopping effect.

FAQ

1. What are your main products?

Our main products include: Anti-Seismic Flexible Pipelines ;Bridge Bearings;Bridge Expansion Joints ;Sealants ; Waterstops

2. Can you provide customized products?

Absolutely! We offer tailored solutions based on your project’s specific requirements, covering everything from material selection (such as NBR, EPDM, and more) to structural design. All custom orders come with detailed technical drawings and professional installation guides to ensure seamless implementation.

3.What certifications does your company possess?

We hold ISO certifications for quality, environmental, and occupational health management systems, ensuring strict compliance with GB/T 17955-2019 and other national standards.

4. Do you offer installation support?

Yes, we provide after-sales support, including remote video guidance for installation.
