Views: 196 Author: Site Editor Publish Time: 2026-05-20 Origin: Site
Modern structural engineering pushes the boundaries of size, span, and complexity. Whether we look at a soaring high-speed railway viaduct, a massive stadium dome, or a complex curved highway interchange, these structures share one critical requirement. They must move. Changes in temperature, heavy traffic loads, wind pressures, and seismic activity force concrete and steel to expand, contract, tilt, and twist. If we do not allow these movements, the internal stress will crack, buckle, and eventually destroy the structure.
To manage this movement, structural designers rely on specialized engineering supports. While standard elastomeric rubber pads work well for small, simple overpasses, high-load and large-span structures require a far more robust system. This is where the modern spherical bearing steps in. By combining high-strength steel plates with advanced low-friction sliding materials, it provides unmatched rotational freedom and load transmission capabilities.
Structures do not move in just one direction. When a heavy cargo train crosses a curved railway bridge, or wind forces hit a wide steel grid dome, the structural joints twist in multiple directions simultaneously. Traditional support systems like standard elastomeric pads or pot bearings have physical limitations that prevent them from accommodating these multi-axial twists safely. A high-performance spherical bearing solves this design bottleneck completely.

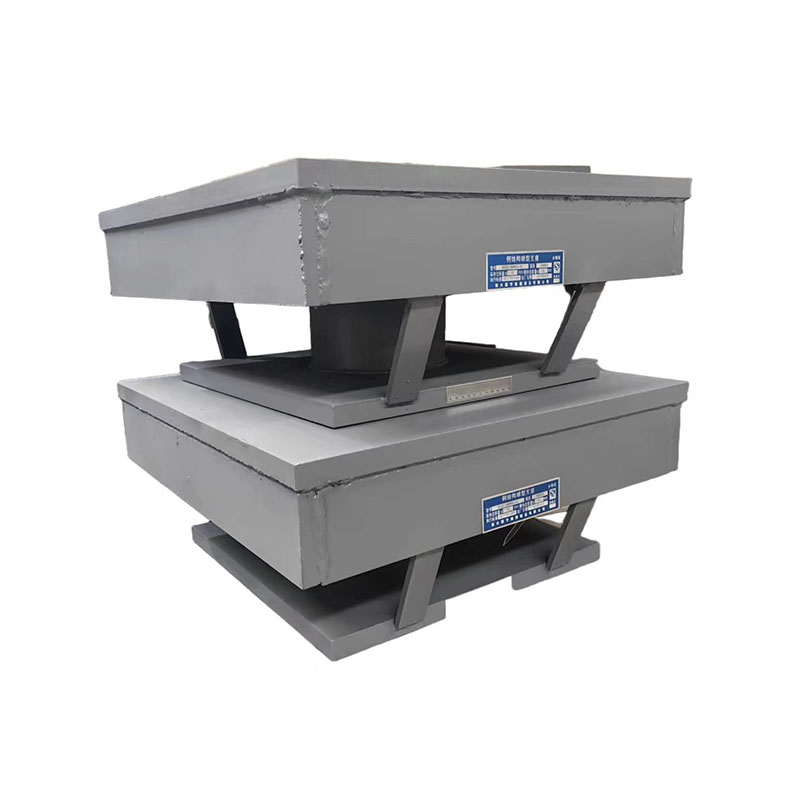

The core advantage of the spherical bearing lies in its unique internal geometry. Instead of relying on the deformation of a rubber pad, it utilizes matching curved steel plates.
The Concave-Convex Interface: The bearing features a bottom concave plate (a bowl-shaped steel base) and a middle convex plate (a dome-shaped steel insert). They fit together with millimeter precision.
Pure Mechanical Sliding: When the structure twists, the convex plate slides smoothly inside the concave bowl. Because the contact surface is spherical, rotation can occur in any direction (diagonal, longitudinal, or transverse) with equal ease.
No Deformation Resistance: Unlike rubber pads that resist rotation as they deform, this steel interface rotates with almost zero structural resistance.
In standard pot bearings, an elastomeric rubber pad is sealed inside a steel cylinder. While it allows some rotation through the hydraulic-like compression of the rubber, this design has severe limits.
The Squeeze-Out Risk: Under extreme or repetitive rotation, the elastomeric pad inside a pot bearing can squeeze out through the sealing rings, leading to sudden support failure.
Localized Stress Concentration: When a pot bearing reaches its maximum rotation angle, the rigid steel piston can bind against the cylinder wall. This creates dangerous localized stress points that can crack concrete piers.
Large Rotation Capacity: A premium spherical bearing routinely accommodates rotation angles of 0.02 to 0.05 radians or even higher. Pot bearings, by comparison, are typically limited to 0.015 radians. This extra capacity is crucial for long-span steel trusses and cable-stayed structures.
As infrastructure gets larger, the weight that individual support points must carry increases exponentially. Engineers need a system that can support tens of thousands of kilonewtons of vertical load while keeping the physical footprint of the support compact. The spherical bearing excels at this, offering superior load distribution properties.
The physics of a curved surface provide a massive structural advantage when transferring heavy vertical loads from the superstructure to the foundations.
Uniform Stress Paths: When vertical weight pushes down on the convex plate, the force spreads evenly across the entire curved surface of the concave plate.
Elimination of Point Loading: Even when the bridge deck tilts or rotates under heavy traffic, the center of pressure remains stable. This prevents edge-concentrated loads, which often damage concrete pedestals when using simpler bearings.
Sleeker Pier Designs: Because the load distributes so efficiently, engineers can design smaller, more aesthetically pleasing concrete support columns. This reduces raw material consumption and lowers overall project costs.
In real-world conditions, vertical loads do not act alone. Wind, braking forces, and earth movements introduce massive horizontal (shear) forces at the same time.
High-Strength Forged Steel: We construct the main body of the bearing from heavy-duty forged structural steel. This material withstands massive vertical compression while resisting high lateral shear loads.
Customizable Force Paths: By adjusting the thickness of the steel guide bars or adding high-strength anchor bolts, we can customize the bearing to resist lateral forces up to 30% or more of its vertical capacity.
Application in Large-Span Buildings: In massive space-frame structures like airports and stadiums, these bearings safely transfer the downward weight of the roof while resisting the uplifting forces caused by strong winds.
Feature / Metric | Standard Elastomeric Pad | Classic Pot Bearing | Advanced Spherical Bearing |
|---|---|---|---|
Max Vertical Load | Low to Medium (<5,000 kN) | High (Up to 50,000 kN) | Ultra-High (Up to 100,000+ kN) |
Rotation Mechanism | Elastomer deformation | Elastomer compression | Curved metal-to-metal sliding |
Max Rotation Angle | Low (<0.01 rad) | Moderate (0.02 to 0.05 rad) | Exceptional (0.02 to 0.08 rad) |
Service Life | Short to Medium (15-20 years) | Medium (25-30 years) | Long (50-100 years) |
Main Failure Risk | Cracking, hardening, ozone wear | Rubber extrusion, piston binding | Slow sliding wear (easily monitored) |
One of the biggest headaches for infrastructure owners is maintenance. Replacing structural supports on an active highway or railway is an incredibly expensive process that requires heavy hydraulic lifting jacks and traffic closures. Choosing a durable spherical bearing dramatically reduces these lifetime maintenance costs.
Standard elastomeric pads rely entirely on vulcanized rubber. Over time, environmental exposure degrades these materials.
Ozone and UV Damage: Continuous exposure to sunlight and air causes natural rubber and neoprene to dry out, stiffen, and develop deep cracks.
Loss of Elasticity: As rubber ages, it loses its ability to deform and recover. This increases the stiffness of the support, transferring unwanted stresses back into the main structure.
The Steel Advantage: A high-quality spherical bearing uses no structural rubber components for its primary load-bearing or rotational functions. It relies on steel and advanced polymers like PTFE (Polytetrafluoroethylene) or modified ultra-high-molecular-weight polyethylene (UHMWPE), which do not degrade when exposed to UV light or ozone.
To protect the steel components from rust in harsh coastal or industrial environments, we implement multi-layered defense systems.
Polished Steel Plates: The sliding interfaces utilize highly polished steel plates that resist corrosion and scratching.
Heavy-Duty Rubber Dust Seals: A flexible, weather-resistant rubber skirt wraps around the internal sliding parts. It acts as a barrier, keeping out water, dust, sand, and de-icing road salts.
Advanced Surface Coatings: The external steel bodies receive zinc-rich primers and epoxy paint systems, or they undergo hot-dip galvanization to ensure they remain rust-free for decades.
In seismic-prone regions, bridges and buildings face violent, unpredictable ground movements. Supports must act as the first line of defense, decoupling the superstructure from the shaking earth to prevent catastrophic collapses. The structural variations of the spherical bearing make it an exceptional seismic isolation component.
During an earthquake, ground acceleration transmits violent horizontal forces into structural piers.
Low-Friction Sliding: By utilizing premium sliding materials, free-sliding and guided versions of the bearing allow the bridge deck to stay relatively still while the ground and piers shake beneath it.
Smooth Energy Dissipation: The smooth sliding action absorbs a portion of the kinetic energy, reducing the seismic forces that reach the main structural spans.
Preventing Structural Pounding: By accommodating large displacement ranges (often up to ±300mm or more), these bearings prevent adjacent bridge spans from crashing into each other during severe seismic events.
We can combine different structural types of the spherical bearing to create a highly effective seismic control network across a multi-span structure.
Fixed Type: Positioned at a central anchor pier, it holds the structure in place during normal operations while allowing full rotation.
Guided Type: Placed on intermediate piers, it restricts movement to the longitudinal direction, ensuring the bridge deck stays aligned on its path.
Free-Sliding Type: Located at the outer spans or abutments, it allows movement in all directions, giving the structure maximum freedom to sway safely during an earthquake.
Temperature swings are a silent, constant force acting on infrastructure. A long concrete or steel bridge can easily expand or contract several inches between the heat of summer and the freeze of winter. If the supports fail to accommodate this thermal expansion, the resulting forces can easily shear concrete piers.
In extremely cold regions, standard rubber-based bearings freeze, harden, and lose their flexible properties, rendering them ineffective.
Temperature-Stable Alloys: The steel core of the bearing maintains its structural properties and load capacity in temperatures as low as -40°C.
Modified Sliding Polymers: Standard PTFE can become stiff in extreme cold, increasing friction. To prevent this, we use modified sliding materials designed specifically to maintain a low friction coefficient even in freezing environments.
Friction Values: Under standard operational pressures, a high-quality spherical bearing lubricated with specialized low-temperature silicone grease maintains a very low friction coefficient:
Standard Temperature Range (above -25°C): ≤ 0.03
Extreme Low-Temperature Range (down to -40°C): ≤ 0.05
When temperatures drop quickly at night, structures contract. If the bearings suffer from high static friction, they can get stuck and then suddenly slip, causing structural vibrations.
Dimpled Grease Reservoirs: The sliding polymer sheets feature tiny dimples that store silicone grease. This ensures continuous, reliable lubrication over decades of movement.
Continuous Sliding Action: The polished stainless steel sliding against the lubricated polymer ensures a smooth, silent transition during thermal expansion and contraction, eliminating jerky "stick-slip" movements.
Lower Stress on Pier Foundations: Because sliding friction remains incredibly low, the lateral thrust forces transferred to the concrete piers during temperature swings are minimized, preserving the foundations.
When evaluating structural components, smart engineers look beyond the initial purchase price. They focus on the total cost of ownership over the entire life of the structure. While a spherical bearing has a higher upfront cost than a simple elastomeric rubber pad, its incredible durability makes it by far the most economical choice over a 50-to-100-year lifecycle.
Replacing a bridge bearing is a logistical and financial nightmare. It requires closing traffic lanes, deploying heavy hydraulic jacks, and risking structural damage.
Lifespan Comparison: Standard elastomeric bearings often require replacement every 15 to 25 years due to natural rubber aging. A robustly designed steel-bodied spherical bearing can easily last the entire 100-year design life of the bridge.
Fewer Operational Interruptions: Avoiding bearing replacement means zero traffic delays, zero toll revenue losses, and zero public complaints over the structure's lifecycle.
Lower Carbon Footprint: Extending the replacement cycle reduces the demand for new raw materials, transportation, and construction energy, supporting green building and sustainability goals.
Modern structural health monitoring demands components that are easy to inspect and evaluate.
Movement Indicators: Many units come equipped with external metal pointers and scale plates. Maintenance crews can quickly check the current displacement and rotation values visually from a safe distance.
Predictable Wear Patterns: Unlike rubber, which can fail suddenly due to internal cracking, the polymer sliding layers in these bearings wear down slowly and predictably. We can easily measure this wear during routine annual inspections.
Easily Replaceable Components: If extreme events cause damage, modern designs allow for the replacement of individual bolts or dust seals without needing to lift the entire bridge deck.
Technical Parameter | Standard Specification Range | Engineering Importance |
|---|---|---|
Vertical Load Capacity | 1,000 kN to 100,000+ kN | Supports everything from small pedestrian bridges to massive railway spans |
Design Rotation Angle | 0.02 rad to 0.05+ rad | Easily accommodates large deflections in flexible, long-span structures |
Working Temperature | -40°C to +60°C | Ensures reliable global performance from arctic plains to desert highways |
Friction Coefficient | ≤ 0.03 (under standard pressure) | Minimizes horizontal force transmission, protecting concrete piers |
Displacement Range | ±50 mm to ±300+ mm | Safely accommodates thermal expansion and seismic shifting |
Bridges and large space-frame buildings are magnificent achievements of human engineering. However, their survival relies on their ability to move safely under pressure. While traditional rubber pads and pot bearings have served the industry well for decades, they struggle to meet the demands of modern, long-span, high-load, and complex structural designs.
The spherical bearing solves these challenges by separating load transmission from rotational movement. Its curved steel core, low-friction sliding polymer sheets, and robust environmental protections offer unparalleled rotation capacity, superior load distribution, exceptional cold-weather performance, and outstanding life-cycle economy. By investing in this advanced technology, engineers can build safer, more durable, and more sustainable infrastructure for the future.
For engineers, contractors, and project developers seeking world-class structural support solutions, Hengshui Guoheng Rubber and Plastic Products Co., Ltd. is your trusted manufacturing partner. With over 20 years of manufacturing experience, we specialize in producing premium spherical bearings and structural bridge supports that meet the most demanding international engineering standards.
Our engineering team works closely with you to design and manufacture customized bearings tailored to your project’s specific load, rotation, displacement, and environmental needs. Explore our complete catalog of high-performance bridge bearings, seismic isolation systems, and technical support services by visiting Guoheng Rubber. Partner with us to build safer, more resilient structures that stand the test of time.
A pot bearing uses an elastomeric rubber pad enclosed inside a steel cylinder to allow rotation through the compression of the rubber. A spherical bearing uses matching convex and concave steel plates with a low-friction polymer sliding layer (like PTFE). This allows the spherical design to support much larger rotation angles and heavier loads without the risk of rubber degradation or extrusion.
Yes. Specialized variations, known as tension-resistant or tensile spherical bearings, are designed with additional steel restraining rings. These components allow the bearing to support massive vertical downward weight while simultaneously resisting upward (tensile) forces, which is highly beneficial for large-span stadium roofs and cantilevers.
We seal the critical sliding interfaces of the bearing using heavy-duty, flexible rubber dust seals. These skirts act as a tight barrier, preventing rainwater, road dust, sand, and aggressive chemical de-icing salts from getting inside and scratching the polished stainless steel or damaging the polymer sheet.
Standard rubber bearings can stiffen and become brittle in freezing temperatures, which can lead to cracking and high resistance to movement. The steel body of a spherical bearing maintains its full structural strength in cold weather, and our advanced sliding polymers are engineered to maintain a low friction coefficient even at temperatures down to -40°C.
They require very low maintenance. We recommend visual inspections once or twice a year to check the dust seals for cracks, verify that the anchor bolts are tight, inspect the outer anti-corrosion coatings for wear, and note the displacement pointer to ensure it is within normal design limits.
