Modern bridges are marvels of engineering. They span massive rivers, connect busy highways, and withstand the constant pounding of heavy trucks, shifting winds, and changing temperatures. But as we build longer, wider, and more complex structures, we face a major challenge. Bridges must move. If a bridge cannot expand, contract, or twist under pressure, it will crack and fail.

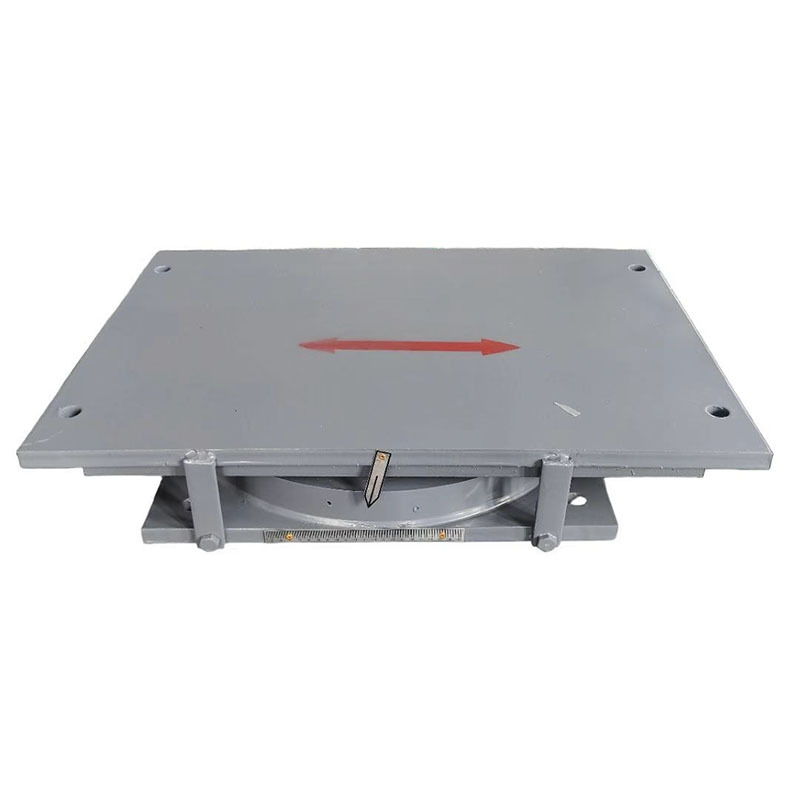

To solve this problem, engineers rely on structural supports called bridge bearings. While simple rubber pads work for small overpasses, massive modern designs require something far more advanced. This is where the spherical bearing becomes an essential asset. By allowing multi-directional rotation and sliding, this advanced component keeps the entire bridge stable under the most extreme conditions.
In this deep-dive guide, we will analyze why the spherical bearing has become the go-to choice for modern bridge construction. We will explore how it works, compare its structural advantages to other options, and look at the technical specifications that make it the ultimate choice for high-load, high-movement infrastructure.
Bridges do not just move in straight lines. When a heavy train crosses a railway viaduct or a line of semi-trucks travels along a curved highway ramp, the bridge deck twists and bends in multiple directions at once. Traditional elastomeric or pot bearings have physical limits that prevent them from accommodating these complex rotations safely. A high-performance spherical bearing solves this limitation entirely.
Standard pot bearings rely on an elastomeric pad enclosed in a steel cylinder. Under extreme rotation, the elastomer can squeeze out, or the steel piston can bind against the cylinder wall. This creates dangerous localized stress points.
The Spherical Advantage: Instead of relying on a deformable rubber pad, a spherical bearing uses a curved steel interface.
Pure Rotation: This design separates the vertical load-carrying capacity from the rotation mechanism. Because the metal surfaces slide smoothly against each other, the bearing can handle massive rotation angles without losing its structural integrity.
No Elastomer Degradation: Since there is no rubber pad to wear down or harden over time, the rotation performance remains perfectly consistent for decades.
Modern highway interchanges often feature complex curved ramps and skewed structures. These geometries experience unique torsional (twisting) forces that standard support pads cannot handle.
Curved Bridges: As vehicles travel along a curve, centrifugal forces push the deck outward. The spherical bridge bearing easily accommodates the resulting multi-directional twisting forces.
Skewed Bridges: Bridges that cross roads or rivers at an angle tend to rotate around their vertical axis. A spherical bearing allows smooth movement in these odd angles, preventing damage to the concrete abutments below.
Wide Spans: Wide bridge decks suffer from transverse (side-to-side) bending due to uneven traffic loading. The large rotational capacity of these bearings prevents the deck from placing uneven pressure on the supporting piers.
As bridges grow larger, the weight they must support increases exponentially. Engineers need a support system that can handle thousands of tons of vertical weight while simultaneously managing sudden lateral shocks from wind, braking vehicles, or earthquakes. An industrial spherical bearing is uniquely qualified to manage these heavy combined loads.
The main job of a bridge bearing is to safely transfer the weight of the bridge deck (the superstructure) down into the concrete pillars (the substructure).
Massive Capacity: High-quality spherical bearings can support vertical loads ranging from 1,000 kN to over 20,000 kN.
Uniform Stress Distribution: Because the internal surfaces are curved, the vertical force is distributed evenly across the entire surface area. This prevents high-stress pressure points that could damage the bridge's concrete supports.
Low Profile Design: Despite their massive load capacities, these units are relatively compact. This low-profile design allows engineers to build sleeker, more attractive bridge structures without sacrificing safety.
Bridges must withstand more than just gravity. They also face horizontal forces from high winds, braking vehicles, and seismic activity.
Resisting Wind Loads: On suspension or cable-stayed bridges, wind can push the deck sideways with immense force. The high-strength steel body of a spherical bearing anchors the bridge deck securely against these lateral pressures.
Braking and Acceleration Forces: When heavy trucks brake suddenly on a bridge, they push the deck forward. Fixed and guided versions of the bearing safely absorb this horizontal energy and transfer it to the foundations.
Seismic Durability: During an earthquake, the earth moves violently. A free-sliding or guided spherical bearing allows the bridge deck to sway independently from the shaking ground, keeping the main structure from collapsing.
To understand why this bearing performs so well, we must look inside it. Unlike simple rubber pads, a spherical bearing is a highly engineered mechanical system. It relies on the precise interaction of curved steel plates and low-friction sliding materials to achieve its incredible performance.
The heart of the bearing consists of two primary matching parts: a bottom concave plate (a bowl-shaped piece of steel) and a middle convex plate (a dome-shaped piece of steel that fits perfectly inside the bowl).
The Rotational Interface: When the bridge deck bends or twists, the convex plate slides smoothly within the concave plate.
Unlimited Angle Capability: Because the contact surface is a perfect section of a sphere, rotation can occur in any direction (longitudinal, transverse, or diagonal) with equal ease.
Constant Centering: The spherical geometry naturally distributes loads toward the center of the bearing, keeping the support forces stable even during extreme structural movements.
Metal rubbing against metal creates high friction, which would quickly destroy the bearing. To prevent this, engineers use high-tech, low-friction materials at the contact interfaces.
PTFE Sliding Sheets: The concave and convex plates are separated by a layer of Polytetrafluoroethylene (PTFE) or ultra-high-molecular-weight polyethylene (UHMWPE). This material has an incredibly low friction coefficient, allowing smooth sliding.
Polished Steel Plates: The flat sliding surfaces on the top of the bearing use highly polished steel plates. These plates slide against a matching PTFE sheet, allowing the bridge deck to expand and contract horizontally.
Silicone Grease Lubrication: To ensure the friction stays as close to zero as possible, the sliding interfaces are dimpled and lubricated with specialized silicone grease. This grease remains stable across a wide temperature range, ensuring smooth performance in hot summers and freezing winters.
No two bridges are exactly alike. A long highway viaduct requires different movement capabilities than a short railway arch bridge. To meet these varying needs, the spherical bearing is manufactured in three main structural styles: fixed, guided, and free sliding.
By choosing the correct combination of these three types, bridge designers can precisely control how a bridge deck moves under load.
Fixed Spherical Bearing: This type allows rotation in all directions but restricts all horizontal movement. It acts as an anchor point, holding the bridge deck securely in place while allowing it to tilt and twist.
Guided Spherical Bearing: This style allows rotation in all directions but restricts horizontal movement to a single path (usually along the length of the bridge). It uses heavy-duty steel guide bars to keep the bridge aligned while allowing longitudinal expansion.
Free Sliding Spherical Bearing: This option offers complete freedom. It allows rotation in all directions and sliding in both longitudinal and transverse directions. It is used on spans that need to expand freely without pushing against their supports.
Bridges typically use a combination of these bearings to manage expansion forces without losing structural stability.
Single-Span Bridges: A simple bridge span might use fixed bearings at one end to lock it in place, and free sliding bearings at the other end to allow thermal expansion.
Multi-Span Viaducts: Long viaducts often place a fixed bearing on a central pier, with guided and free-sliding bearings on the outer piers to distribute expansion forces evenly.
Curved Overpasses: Curved designs often use guided bearings aligned with the curve's radius, ensuring the deck stays centered on its supports as it moves.
Bearing Type | Rotational Ability | Longitudinal Movement | Transverse Movement | Typical Structural Role |
|---|---|---|---|---|
Fixed | Multi-Directional | None (Restrained) | None (Restrained) | Main structural anchor point |
Guided (One-Way) | Multi-Directional | Allowed (e.g., ±100mm) | None (Restrained) | Aligns deck along travel path |
Free Sliding | Multi-Directional | Allowed (e.g., ±150mm) | Allowed (e.g., ±40mm) | Accommodates multi-axis expansion |
One of the biggest challenges in bridge design is thermal movement. Concrete and steel expand when they get hot and shrink when they get cold. A 1,000-meter bridge can easily grow or shrink by several inches over the course of a year. If a bridge's bearings lock up in extreme weather, the resulting stresses can tear the concrete foundations apart.
In cold regions, standard rubber bearings can harden and lose their flexibility, making them useless. A steel-bodied spherical bearing remains completely unaffected by freezing temperatures.
Stable Materials: Steel does not lose its structural strength in freezing weather, ensuring the bearing can still support massive vertical loads.
Specialized Cold-Resistant PTFE: Manufacturers use advanced sliding materials designed to maintain a low friction coefficient even at extremely low temperatures.
Friction Values: Under standard operating stress (around 30 MPa), the friction coefficient of a high-quality spherical bearing lubricated with silicone grease remains incredibly low:
Normal Temperature (above -25°C): 0.03
Cold-Resistant Temperature (down to -40°C): 0.05
Because the sliding interface uses steel plates and PTFE, the expansion and contraction of the bridge deck happen smoothly and silently.
Preventing Pier Overload: When a bridge expands, it pushes sideways on its piers. Because the spherical bridge bearing has extremely low sliding friction, it minimizes the horizontal force transferred to the piers, protecting them from structural bending.
Eliminating Jerky Movements: Cheap bearings can suffer from "stick-slip" behavior, where they lock up and then suddenly slip with a loud bang. The continuous lubrication and premium materials in modern spherical designs ensure smooth, continuous movement.
Handling Daily Temperature Swings: Bridges experience thermal movement every single day, not just between seasons. The quick-response design of these bearings handles daily expansion cycles without wearing down.
When building a bridge, engineers look far into the future. They want the structure to last 50, 75, or even 100 years. Replacing a bridge bearing is an incredibly expensive and difficult process that requires lifting the entire bridge deck with massive hydraulic jacks. Therefore, choosing a highly durable, low-maintenance spherical bearing offers massive financial benefits over the life of the structure.
Because these bearings are exposed to harsh outdoor environments, they must be built to resist rust, moisture, and road salt.
Premium Alloys: The main body of the bearing is forged from high-strength structural steel, ensuring it can withstand decades of heavy traffic vibrations without suffering from metal fatigue.
Corrosion Protection: The outer steel surfaces are coated with advanced multi-layer paint systems, zinc-rich primers, or hot-dip galvanization to block moisture and oxygen.
Dust and Debris Seals: To protect the internal sliding surfaces, high-durability rubber seals encase the sliding interfaces. This keeps road dust, rain, and salt out of the critical PTFE-stainless steel contact zones.
While elastomeric bearings often need replacement every 15 to 25 years due to rubber aging and cracking, a well-built spherical bearing can easily last the entire lifetime of the bridge with minimal intervention.
Reduced Inspection Times: Maintenance crews only need to perform quick visual checks to ensure the seals are intact and the movement indicators are showing normal ranges.
Easy Bolt Replacement: Modern designs feature easily accessible anchor bolts. If a bolt is damaged by road debris, it can be replaced quickly without lifting the bridge deck.
Excellent ROI: Although the initial purchase cost of these bearings is higher than that of simple rubber pads, the savings on maintenance, repairs, and premature replacements make them by far the most economical choice over the bridge's lifecycle.
Technical Parameter | Standard Specification Range | Engineering Importance |
|---|---|---|
Vertical Loading Capacity | 1,000 kN to 20,000+ kN | Supports standard to heavy-duty bridges |
Working Temperature | -40°C to +60°C (with cold-resistant options) | Performs reliably in any global climate |
Design Rotation Angle | 0.01 to 0.02 rad (Customizable up to 0.05+ rad) | Handles extreme twisting in complex spans |
Normal Friction Coeff. | ≤ 0.03 (under 30 MPa pressure) | Minimizes horizontal forces on concrete piers |
Design Displacement | ±50 mm to ±200+ mm | Allows large thermal expansion and contraction |
Bridges are under constant pressure from gravity, traffic, wind, and changing temperatures. To survive these forces, they need to rotate and slide smoothly. While older bearing designs struggle with large vertical loads and complex twisting movements, the spherical bearing excels in these demanding environments. Its curved steel core, low-friction sliding sheets, and versatile structural designs make it the perfect support system for modern high-performance infrastructure.
By investing in high-quality spherical bearings, bridge builders ensure their structures remain safe, stable, and durable for decades. From curved highway ramps to massive railway viaducts, these engineering marvels keep the global transport network moving safely
For engineers and contractors seeking top-tier structural support solutions, Hengshui Guoheng Rubber and Plastic Products Co., Ltd. is a world-class manufacturing partner. We specialize in producing premium spherical bearings engineered to meet strict international construction standards. Our products are designed for maximum durability, exceptional load-bearing capacity, and outstanding low-temperature performance.
Whether you are designing a high-speed railway viaduct, a complex highway overpass, or a heavy-duty industrial bridge, our team of experts is ready to provide customized solutions tailored to your project's exact needs. Explore our complete range of structural bridge bearings and technical services by visiting Guoheng Rubber. Partner with us to build safer, more resilient infrastructure for the future.
A pot bearing uses an elastomeric rubber pad enclosed in a steel pot to allow rotation. A spherical bearing uses matching convex and concave steel plates with a low-friction PTFE sliding layer. This allows the spherical design to handle much larger rotation angles and higher vertical loads without the risk of rubber degradation.
Yes. While standard models offer displacements of ±50mm to ±200mm and rotations of 0.02 rad, manufacturers like Guoheng Rubber can customize the plate dimensions, sliding paths, and curved surfaces to accommodate much larger movements for specialized bridges, such as long-span suspension bridges.
High-quality bearings feature heavy-duty, flexible rubber dust seals that wrap around the sliding interfaces. These seals act as a barrier, keeping out water, dust, sand, and de-icing salts, which would otherwise scratch the polished stainless steel or wear out the PTFE sheet.
Elastomeric bearings become stiff and brittle in freezing weather, which can lead to structural cracking. In contrast, the steel body of a spherical bearing maintains its strength at low temperatures, and the specialized PTFE interfaces continue to slide smoothly even at temperatures down to -40°C.
They should be inspected visually once or twice a year. Inspectors check for cracked seals, loose anchor bolts, rust on outer coatings, and uniform movement along the sliding guides. Thanks to their high-durability design, actual physical maintenance or component replacement is rarely required.
