Bridges undergo expansion, contraction, and rotation due to temperature changes, concrete shrinkage and creep, and vehicle loads during service. If these movements are not properly accommodated, additional internal forces will develop between the beam ends and abutments, affecting structural safety and service performance. Bridge expansion joints are functional devices installed at deck joint locations to provide a passage for beam movement while maintaining deck smoothness and joint sealing. Different types of expansion joints differ significantly in structural composition and working mechanism. Understanding these differences helps in making appropriate selections for specific projects. Modular expansion joints, finger type expansion joints, and rubber slab expansion joints are three common types, each with specific characteristics in displacement accommodation, driving experience, and economy.

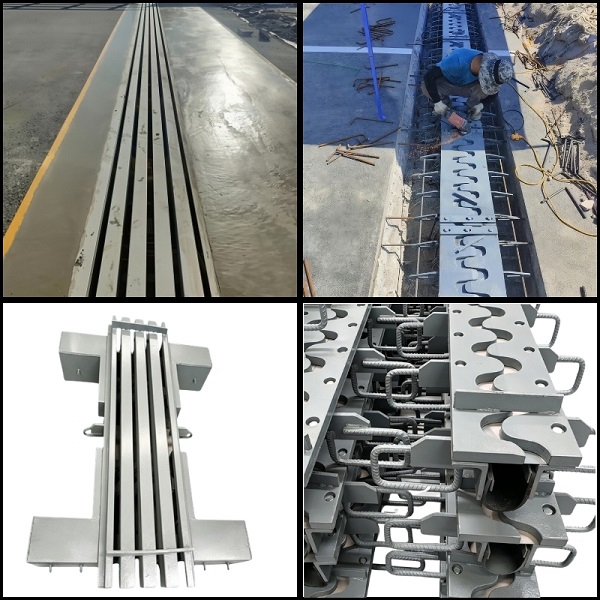

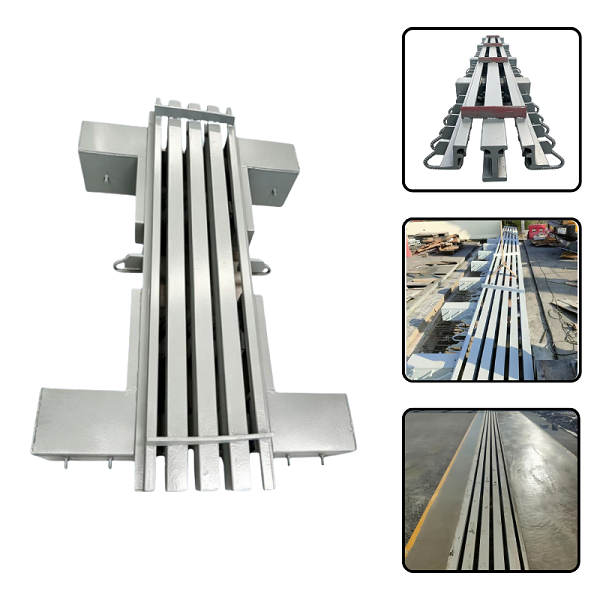

Modular expansion joints are bridge movement devices with a modular design, achieving large cumulative expansion ranges through the combination of multiple identical or similar structural units. The core components include intermediate beams, support cross beams, displacement control boxes, and rubber sealing strips.
Intermediate beams are steel profiles that directly bear vehicle loads, arranged transversely along the bridge deck, usually with multiple beams in parallel. Each intermediate beam is supported underneath by support cross beams, which transfer wheel loads to the beam end anchorage zones. Equal spacing is maintained between intermediate beams, with the gap size determined by the design expansion range. When the beam undergoes longitudinal displacement, the intermediate beams move synchronously under the restraint of the displacement control boxes, and the gaps between adjacent beams change uniformly, distributing the total expansion across individual gap units.
The displacement control box is a key component of modular expansion joints. It connects the intermediate beams with the support cross beams, maintaining uniform spacing between the beams through linkage or spring mechanisms. Without displacement control boxes, the beams might move asynchronously due to uneven friction, causing some gaps to become too large or too small, affecting sealing effectiveness and driving smoothness. The function of the displacement control box is to make all intermediate beams share the total displacement in a predetermined proportion, ensuring that every sealing unit participates in the work.
Rubber sealing strips are fixed in the grooves between adjacent intermediate beams, forming a continuous waterproofing barrier. The sealing strip cross section is typically a hollow tube or wing shape, and after installation in the steel profile groove, it maintains contact through the elasticity of the rubber. When the gap changes, the sealing strip expands or contracts accordingly while maintaining contact with the steel profiles. Sealing strips are consumable components of modular expansion joints and may require sectional replacement after long term service.
The working mechanism of a modular expansion joint can be summarized as follows: beam displacement drives the intermediate beams to move, the displacement control box coordinates synchronous movement of all intermediate beams, the rubber sealing strip adapts to gap changes and maintains sealing, and the support cross beams transfer wheel loads to the anchorage zones. This structure enables modular expansion joints to cover a large displacement range while providing strong load bearing capacity, making them suitable for long span bridges and heavy traffic conditions.

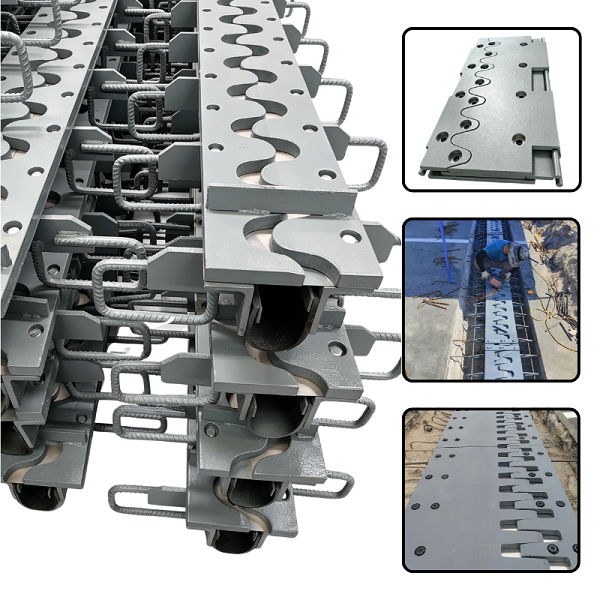

Finger type expansion joints adopt a completely different structural logic from modular joints. The core components are two sets of steel finger plates arranged in opposite interleaved directions. One set of finger plates is fixed to the beam end on one side of the deck, and the other set is fixed to the adjacent beam end or abutment. The tooth surfaces of the two plate sets intermesh without contact, with preset gaps between the teeth.
The finger plates are the main load bearing body of the finger type expansion joint. Each finger plate consists of a set of parallel steel teeth, with the width, length, and spacing determined by the design displacement and wheel load conditions. Finger plates are typically fixed to the beam ends using cantilever or simply supported methods. Cantilever support anchors one end of the finger plate to the beam end while the other end extends toward the opposite side, resulting in a compact structure with lower installation height. Simply supported arrangements provide bearing points at both ends of the finger plate, offering stronger deflection control, and are suitable for scenarios with large displacement or high load grades.
The working mechanism of a finger type expansion joint is based on the automatic opening and closing of the tooth gaps. When the beam elongates due to rising temperature, the beam ends on both sides move closer together, the overlap length of the two finger plate sets increases, and the tooth gaps decrease. When the beam shortens due to falling temperature, the beam ends move apart, the overlap length decreases, and the tooth gaps increase. Throughout the displacement process, the finger plates remain intermeshed, forming a continuous load bearing surface. When wheels travel from one side of the deck to the other, they are always supported by a finger plate, without the momentary loss of support across a gap.
Unlike modular expansion joints, finger type expansion joints do not rely on rubber sealing strips for displacement accommodation. Their displacement capacity is entirely determined by the geometric parameters of the finger plates, including tooth length, tooth width, and preset gaps. Tooth length determines the minimum overlap depth that the plates can maintain under maximum displacement, tooth width affects the wheel pressure contact area, and preset gaps must avoid tooth tip collision under maximum compression. These parameters require precise calculation during the design phase based on the bridge displacement and installation conditions.
Another structural feature of finger type expansion joints is the open space beneath the finger plates. Drainage channels or collection troughs are typically provided below the finger plates, allowing water penetrating through the tooth gaps to drain naturally under gravity without accumulating within the joint. This design reduces debris accumulation and frost heave risk, and also reduces reliance on sealing materials. Some finger type expansion joints still incorporate a waterproofing layer beneath the finger plates as a supplementary waterproofing measure.
In terms of driving performance, the continuous finger surface of the finger type expansion joint provides a driving experience approaching that of a seamless deck. The contact between wheels and the finger surface is continuous rolling rather than jumping impact, maintaining good smoothness even at higher vehicle speeds. This characteristic has led to its wide application in long span bridges, urban landscape bridges, and airport runway bridges.

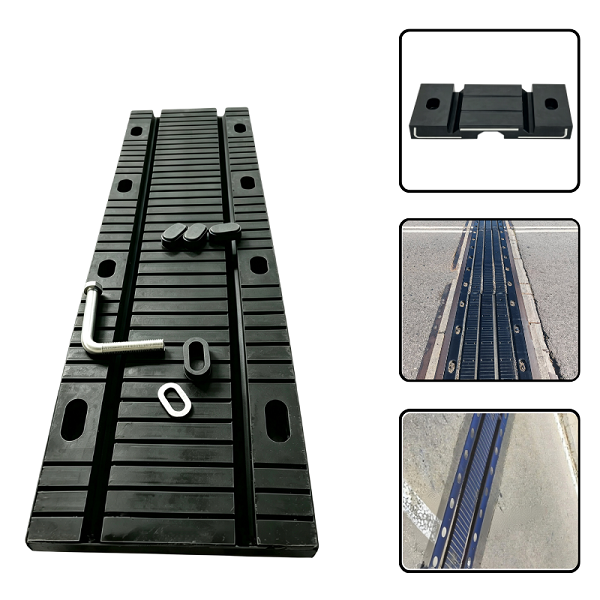

The laminated rubber expansion joint is a bridge deck joint device that uses a composite body of rubber and steel plates as the core deformation element. Its structure mainly consists of three parts: the expansion body, the anchorage system, and the sealing and assembly construction. The core principle is to use the shear deformation of the rubber body to accommodate bridge expansion and contraction displacement.
The expansion body is the core component of the laminated rubber expansion joint, formed by vulcanizing rubber and load bearing steel plates into one piece. The steel plates are embedded within the rubber body, spanning the beam end gap and directly bearing vehicle loads. Utilizing the low shear modulus of rubber, the shear deformation of the rubber body between the upper and lower grooves accommodates beam displacement. The composite structure of rubber layers and steel plates provides vertical load bearing stiffness while offering flexible deformation capacity in the horizontal direction. When the beam expands or contracts, the rubber body undergoes shear deformation, with rubber molecular chains extending along the displacement direction and generating restoring force, returning to its original shape after the displacement disappears.
The anchorage system is responsible for fixing the expansion joint to the bridge structure. Anchorage steel plates are embedded on both sides of the rubber body, with pre drilled bolt holes. The expansion joint is connected to the beam end structure as a whole through bolts. The dimensions of the anchorage steel plates and the positions of the bolt holes are determined according to the beam end embedded parts and design loads, ensuring reliable connection and uniform force distribution. This anchorage method keeps the expansion joint in a stable connection state under long term vehicle loads and displacement cycles.
The sealing and assembly construction relates to the waterproofing performance and installation convenience of the expansion joint. Adhesive is applied inside the bottom bolt holes and at each meter of the assembly joints to ensure the waterproofing performance of the joint. The overall structure adopts a segmented assembly method, with each part connected by bolts, facilitating transportation, on site installation, and subsequent maintenance. The segment length can be determined according to the bridge deck width and lifting conditions.
The working mechanism of a laminated rubber expansion joint can be understood as an elastic connection. When the beam displaces, the rubber body undergoes shear deformation between the two anchorage points, providing restoring force. This displacement accommodation method does not rely on mechanical sliding components or finger plate intermeshing, resulting in a simple structure and convenient installation. Its displacement capacity is generally smaller than that of modular and finger type expansion joints, making it suitable for small to medium span bridges. In projects with modest temperature variation and small beam expansion, laminated rubber expansion joints can provide sufficient displacement accommodation while offering good economy.
In terms of durability, the performance of laminated rubber expansion joints depends on the aging resistance of the rubber material and the reliability of the anchorage connection. Natural rubber offers good elasticity and durability under normal climatic conditions, while chloroprene rubber performs better in weather and ozone resistance, making it suitable for regions with more complex environmental conditions. The rubber body surface gradually wears under long term vehicle traffic, and replacement is required after a certain degree of wear. The segmented assembly design makes replacement relatively straightforward without dismantling complex metal structures.
Modular, finger type, and laminated rubber expansion joints each have specific characteristics in structural composition and working mechanism. The following summary covers several dimensions to help understand their respective applicable engineering conditions.
Displacement Accommodation Method: Modular expansion joints distribute total displacement across multiple intermediate beams and sealing units, offering strong displacement capacity that can be expanded by adding modules. Finger type expansion joints accommodate displacement through changes in finger plate overlap length, with capacity determined by tooth length and preset gaps. Laminated rubber expansion joints absorb displacement through rubber body shear deformation, with relatively limited capacity suitable for small to medium displacement requirements.
Load Bearing Structure: Modular expansion joints use a steel framework support, with intermediate beams and support cross beams jointly carrying wheel loads, providing high structural redundancy. Finger type expansion joints have finger plates directly bearing wheel pressure, with a simple load transfer path, where plate thickness and support spacing are key design parameters. Laminated rubber expansion joints rely mainly on the composite structure of rubber and steel plates as well as bolted anchorage connections.
Waterproofing Method: Modular expansion joints rely on rubber sealing strips fixed in steel profile grooves to form a continuous watertight barrier. Finger type expansion joints primarily use open finger base drainage, with some products supplemented by a waterproofing layer. Laminated rubber expansion joints use the rubber body itself as the waterproofing layer, with adhesive applied in bottom bolt holes and assembly joints to ensure waterproofing.
Driving Experience: The continuous finger surface of finger type expansion joints provides a driving experience approaching a seamless deck, with good smoothness. Modular expansion joints may have slight vibration at sealing strip locations. Laminated rubber expansion joints have a flat surface, suitable for lower speed applications.
Maintenance Characteristics: Sealing strips in modular expansion joints can be replaced in sections, offering good maintenance convenience. Finger plates in finger type expansion joints can be replaced in single sets after wear, with longer maintenance intervals. Laminated rubber expansion joints use segmented assembly, allowing targeted replacement after rubber body wear, with relatively simple maintenance operations.
Typical Applications: Modular expansion joints are suitable for long span bridges and heavy traffic conditions. Finger type expansion joints are suitable for long span bridges and urban landscape bridges with high driving comfort requirements. Laminated rubber expansion joints are suitable for small to medium span bridges and low traffic volume roads.
The three types are not mutually replaceable, but correspond to different engineering needs and conditions. In actual projects, comprehensive judgment should be made based on bridge span, displacement, traffic load, driving requirements, and maintenance conditions.
The type composition of a bridge expansion joint determines its working mechanism, and the working mechanism in turn determines its applicable engineering conditions. Modular expansion joints achieve large displacement accommodation and reliable waterproofing through a modular steel framework and rubber sealing strips. Finger type expansion joints provide a smooth driving experience through finger plate intermeshing and open drainage. Laminated rubber expansion joints meet small to medium displacement requirements through a composite structure of rubber and steel plates with bolted anchorage. The three types each play different roles in bridge engineering. Understanding their structural composition and working mechanisms helps in making reasonable technical judgments during project design and service stages. The choice of expansion joint ultimately depends on the specific conditions of the bridge, rather than the general superiority or inferiority of any one type.
