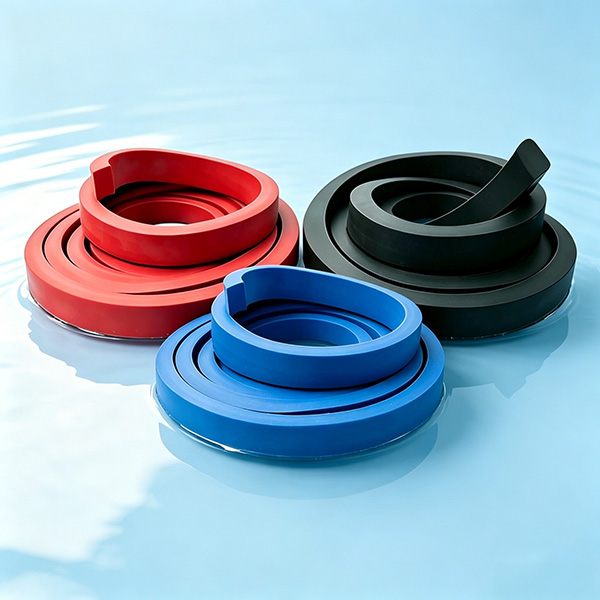

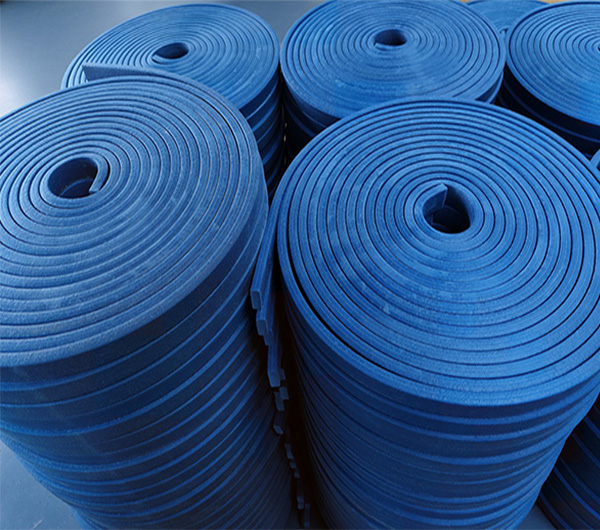

As subterranean construction penetrates deeper strata and water-retaining structures face more demanding hydraulic pressures, engineers increasingly turn to solutions that actively engage with moisture rather than passively resisting it. Water-swellable waterstop strips — also referred to as water-activated expansion joint fillers — embody this philosophy by expanding upon contact with water to form a resilient seal within concrete joints. These durable construction joint waterproofing solutions integrate hydrophilic compounds that harness the very threat of water ingress to protect the structure.
Core Composition and Swelling Mechanism of Water-Swellable Waterstop Strips
The functional backbone of a reliable water-swellable waterstop strip is its carefully engineered composite structure. Typically, a vulcanized elastomeric matrix — frequently natural rubber, chloroprene rubber, or ethylene propylene diene monomer — provides mechanical toughness and elastic recovery. Dispersed within this matrix are superabsorbent polymer domains, such as cross-linked sodium polyacrylate or polyurethane prepolymers, which drive the water-activated response. Certain advanced hydrophilic waterstop strips also incorporate purified bentonite to enhance long-term swelling stability.

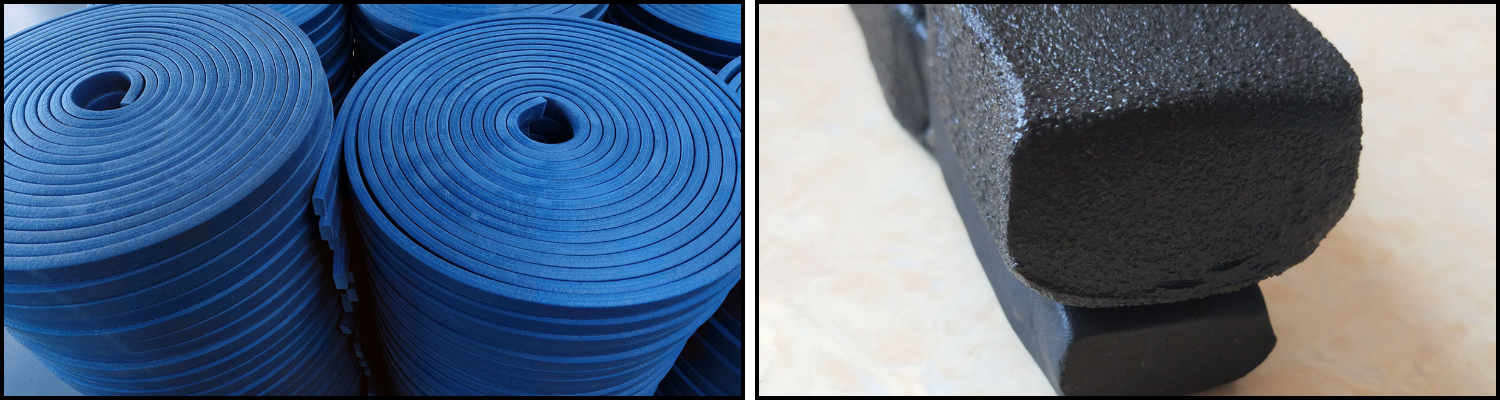

When the strip is dry, it remains dimensionally stable for fast positioning. Once liquid water contacts the polymer phase, a cascade begins: water molecules penetrate via osmosis and hydrogen bonding, causing polymer chains to uncoil and the macroscopic volume to increase, typically by 150% to 600%. This controlled expansion generates a sealing pressure sufficient to plug bleed holes, micro-cracks, and surface irregularities without exerting destructive stress on the concrete.
To prevent premature activation during storage or installation in humid environments, a temporary water-soluble release coating is often factory-applied to the strip surface. This coating dissolves gradually upon intentional contact with construction water or groundwater, allowing crews adequate open time for precise placement. In heavy-load applications such as deep basement slabs or tunnel inverts, a composite water-swellable waterstop strip — reinforced through integrated material layers — provides enhanced tensile strength and dimensional stability during concrete placement. A clear understanding of this composition and behavior assists specifiers in selecting a water-swellable waterstop strip matched to their project's specific water chemistry and joint configuration.
Key Performance Indicators for Selecting Hydrophilic Sealing Strips
Specifying a successful water-swellable waterstop strip demands a holistic evaluation of site conditions against measurable performance metrics. A premium hydrophilic sealing strip does more than simply expand; it sustains that seal throughout the structure’s design life. Below are the critical indicators that guide proper selection of a high-performance hydrophilic sealing strip:
Restrained Expansion Capability
A high-grade hydrophilic waterstop strip achieves its specified volumetric expansion while confined within a joint, generating enough sealing pressure without stressing the adjacent concrete edges beyond their tensile capacity.
Concrete Adhesion and Gap Bridging

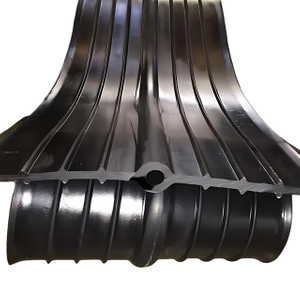

Unlike passive PVC or metal waterbars, a water-activated expansion joint filler bonds directly to the concrete substrate in the presence of moisture, effectively sealing around protruding aggregate particles and bridging hairline non-structural cracks.
Resistance to Aggressive Water Chemistries
High-performance hydrophilic sealing strips retain their swelling efficiency and elasticity when exposed to saline groundwater, acidic runoff, or highly alkaline pore solutions — conditions common in marine infrastructure and brownfield sites.
Wet-Dry Cycle Durability
The elastomeric base and polymer network must endure repeated cycles of drying shrinkage and water-induced expansion without cracking or losing recovery force, ensuring a reliable seal in zones with fluctuating water tables.
Installation-Ready Design
Preformed profiles with pressure-sensitive adhesive backings allow quick nail-fixing or tying to reinforcement, eliminating field welding and significantly compressing construction schedules.
On-Site Applications and Installation Protocols for Swelling Rubber Waterstop Strips
Swelling rubber waterstop strips serve a broad array of waterproofing roles in modern civil and hydraulic engineering. They are centrally positioned along construction joints in basement slabs, diaphragm walls, cast-in-situ tunnels, and water treatment tanks before the secondary concrete pour. At pipe penetrations and tie-rod holes, these water-activated joint fillers are wrapped and compressed to create a radial, self-sealing annulus. In each case, the durable construction joint waterproofing solution must be installed with precision to unlock its reactive potential.
The receiving concrete surface should be mechanically cleaned to remove laitance, dust, and curing compound residues. A water-swellable waterstop strip is then fixed at regular intervals along the joint centerline using steel nails or a compatible structural adhesive. At splice points, the strip ends are overlapped and firmly bonded with a suitable adhesive — typically a cyanoacrylate glue or rubber cement — to maintain continuity of the hydrophilic network. The overlap length should follow the product specification to ensure a reliable seal at the connection.
For overhead or vertical applications, additional adhesive fixing prevents displacement during concrete placement. Crucially, a swelling rubber waterstop strip must be shielded from rainfall, standing water, or prolonged damp air until the surrounding concrete has set. Any premature moisture uptake will trigger expansion before the joint is formed, neutralizing its later reactive capability. When these protocols are observed, the installed water-activated joint filler remains dormant, activating only years later should a crack admit moisture — delivering a truly intelligent, low-maintenance waterproofing defense.
The advancement of water-swellable waterstop strips has fundamentally shifted joint waterproofing from a static barrier approach to an active, self-healing strategy. By fusing material elasticity with water-activated sealing technology, these expanding rubber waterstop strips provide a dynamic seal that accommodates minor structural movements and surface defects. Their simplicity in installation and reactive mode of operation reduce life-cycle inspection and repair burdens across tunnels, basements, and water-retaining assets. As building complexity escalates, specifying reliable water-activated joint fillers will remain central to delivering infrastructure that stays watertight not merely at commissioning, but throughout its entire intended service life — a quiet, embedded guardian activated only when needed.
