In concrete structure engineering,waterstops are important components used for joint waterproofing.Rubber waterstops and PVC waterstops are two widely used types.These two types have their respective focuses in terms of material composition,performance characteristics,and applicable scenarios.This article provides an objective comparison and analysis of their similarities and differences to serve as a reference for engineering selection.

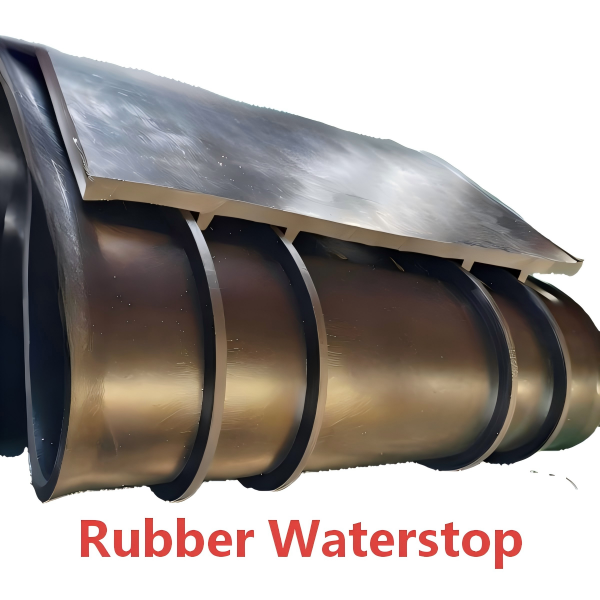

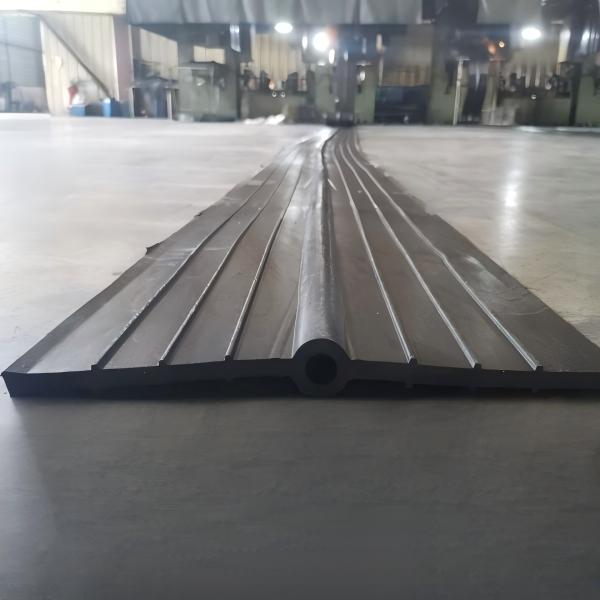

Rubber waterstops are made from natural rubber or synthetic rubber as the base material.Commonly used synthetic rubbers include Ethylene Propylene Diene Monomer(EPDM)and Chloroprene Rubber(CR).Natural rubber offers good elasticity and tear resistance;EPDM exhibits relatively outstanding performance in weather resistance,aging resistance,and ozone resistance;CR possesses certain oil resistance and chemical medium resistance.As an elastomer,rubber waterstops can be manufactured into various cross-sectional shapes according to engineering requirements.

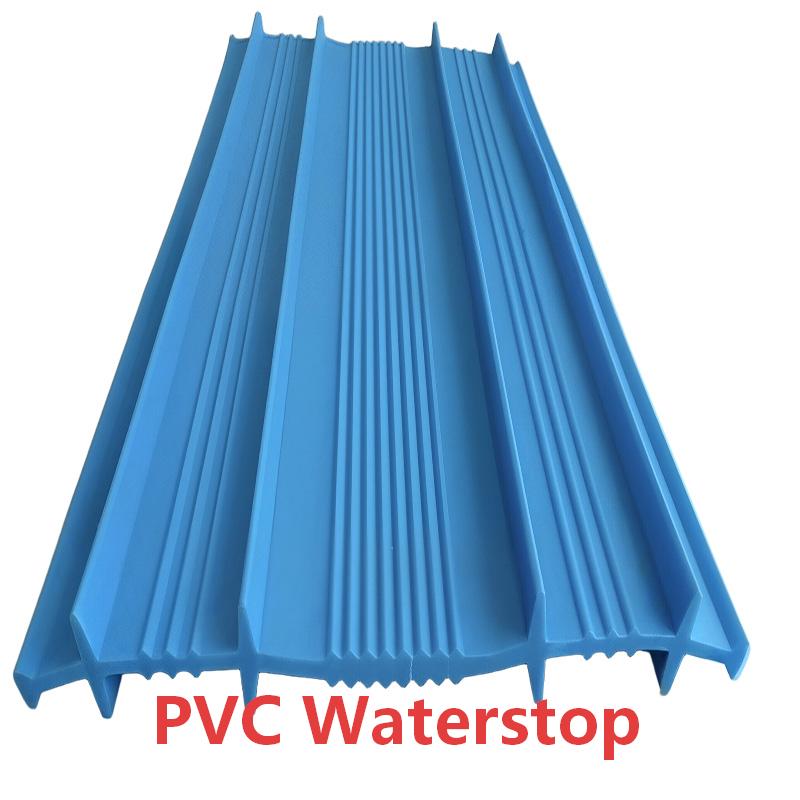

PVC waterstops are primarily made from polyvinyl chloride resin through extrusion molding.This material has a certain degree of strength and flexibility.By adding plasticizers,stabilizers,and other additives,the hardness and low-temperature performance of the material can be adjusted.PVC waterstops are relatively convenient to process and form,offer diverse cross-sectional shapes,and are suitable for joint waterproofing in conventional environments.
The advantages of rubber waterstops are mainly reflected in their elasticity and deformation adaptability.When concrete structures experience displacement due to factors such as temperature changes,settlement,or earthquakes,the rubber material can maintain its sealing effectiveness through its inherent elasticity.It conforms well to construction interfaces,and the requirements for installation are relatively moderate.Under conventional environmental conditions,rubber waterstops can maintain relatively stable physical properties.
PVC waterstops perform well in terms of chemical corrosion resistance and have good adaptability to general water quality and soil environments.The material is lightweight,allowing for higher construction efficiency.Joint treatment can be done using heat fusion or specialized adhesives,offering convenient operation.PVC waterstops are commonly used in indoor environments with minimal temperature fluctuations or in underground structures.
Rubber waterstops are suitable for engineering parts requiring a high capacity for deformation adaptability.Typical applications include:
Underground Engineering:Joint waterproofing for basements,underground utility tunnels,and similar structures.
Tunnel Engineering:Expansion joints and construction joints in tunnel linings.
Hydraulic Structures:Structures subject to water pressure and potential displacement,such as dams and sluice gates.
Wastewater Treatment Plants:Locations within tank structures where the chemical characteristics of the medium need consideration.
PVC waterstops are often used in underground structures of general industrial and civil buildings,as well as indoor environments with minimal temperature changes and limited UV exposure.Their applications include:
Joints in basement floors and walls of buildings.
Supporting structures like underground parking garages and underground shopping centers.
Small-scale channels and reservoirs in agricultural water conservancy projects.
When selecting a waterstop,a comprehensive evaluation based on the following aspects is advisable:
Structural Deformation Characteristics:For locations with significant deformation or uncertain displacement directions,the elastic adaptability of rubber waterstops is suitable.For locations where deformation is relatively controllable,PVC waterstops can meet the requirements.
Environmental Conditions:For outdoor exposed environments or areas with strong UV radiation,rubber waterstops(especially EPDM)possess certain characteristics regarding weather resistance.In indoor or underground environments,the performance of PVC waterstops is relatively stable.
Medium Contact:If oils or chemical media are present in the project,chloroprene rubber waterstops can be selected,or the suitability of PVC waterstops can be evaluated based on the specific type of medium.
Construction Conditions:The installation methods for the two materials differ,allowing selection based on site conditions.
Economy:Material costs and construction duration should be considered in conjunction with the overall project budget.
Rubber waterstops and PVC waterstops each have their own characteristics in terms of material and performance,making them suitable for different engineering scenarios.Rubber waterstops exhibit notable advantages in elasticity and deformation adaptability,making them suitable for applications with high deformation requirements,such as tunnels and hydraulic structures.PVC waterstops have certain advantages in chemical corrosion resistance and construction convenience,making them suitable for conventional environments like building basements.Designers and construction personnel should select the appropriate type based on structural requirements,environmental conditions,and actual construction practices,while also emphasizing quality control during installation to achieve the intended waterproofing effect.
