Product Classification
By flow characteristics: Non-Sag (N) for vertical and inclined joints; Self-Leveling (L) for horizontal joints.
By modulus: High Modulus (HM) suitable for joints with smaller movement; Low Modulus (LM) suitable for joints with larger movement.
Product Parameters
No. | Item | Specification | ||||
25LM | 25HM | 20LM | 20HM | |||
1 | Density g/cm3 | Nominal value±0.1 | ||||
2 | Tack-free Time h | ≤24 | ||||
3 | Working Life (Pot Life) h | ≥0.5 | ||||
4 | Flow Characteristics | Sag (Type N) mm | ≤3 | |||
5 | Extrudability ml/min | ≥150 | ||||
6 | Tensile Adhesion at Maintained Extension | No failure | ||||
7 | Elastic Recovery % | ≥70 | ||||
8 | Tensile Modulus MPa | 23℃ | ≤0.4 | >0.4 | ≤0.4 | >0.4 |
-20℃ | ≤0.6 | >0.6 | ≤0.6 | >0.6 | ||
9 | Bonding Properties after:Cold Stretch & Heat Compression/Immersion & Extension/Artificial Weathering | No failure | ||||
10 | Mass Loss % | ≤5 | ||||
Note: This data represents partial parameters for the polyurethane sealant. Please contact us for complete data sheets for all products.
Application Scope
This product is used in civil engineering and construction, transportation, and for sealing connections and construction joints of precast concrete components. Applications include sealing and filling of joints in roads, bridges, airport runways, underground pipelines, pipe connections, as well as expansion joints and deformation joints in tunnels and buildings.
Application and Storage
Application Method
Surface Preparation: The application surface must be clean, dry, and free from oil, dust, and loose particles. Primer may be used if necessary.

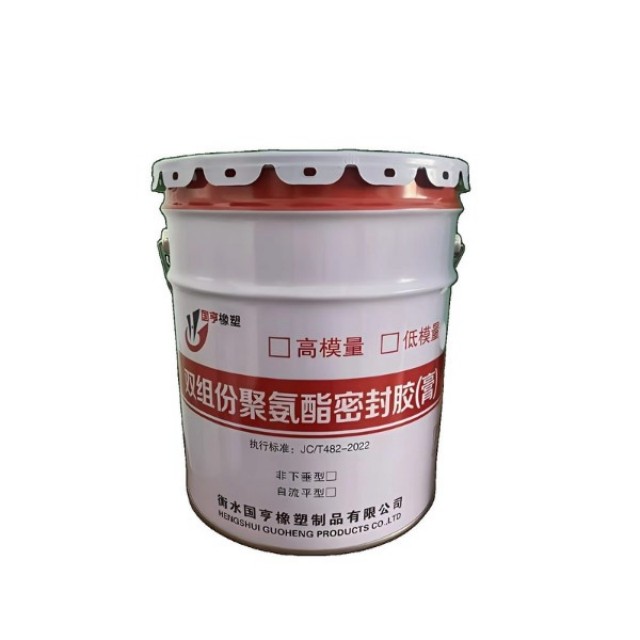

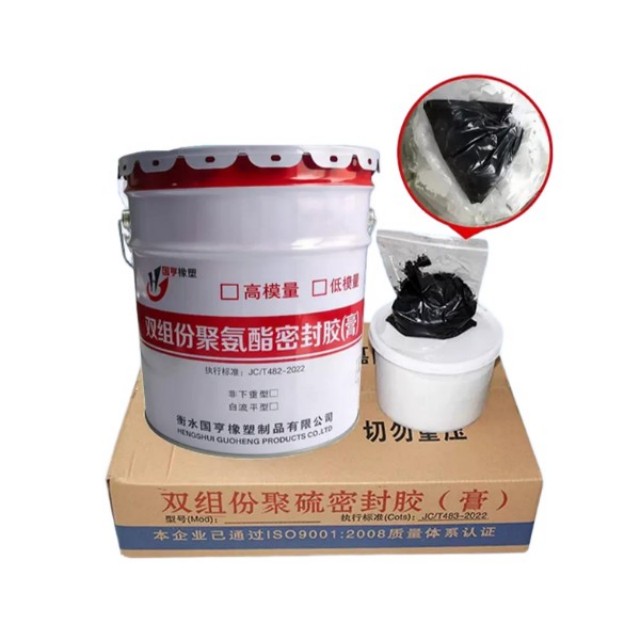

Mixing (Two-Component): Mix Component A and B thoroughly according to the specified ratio on the package, avoiding air entrapment.
Application

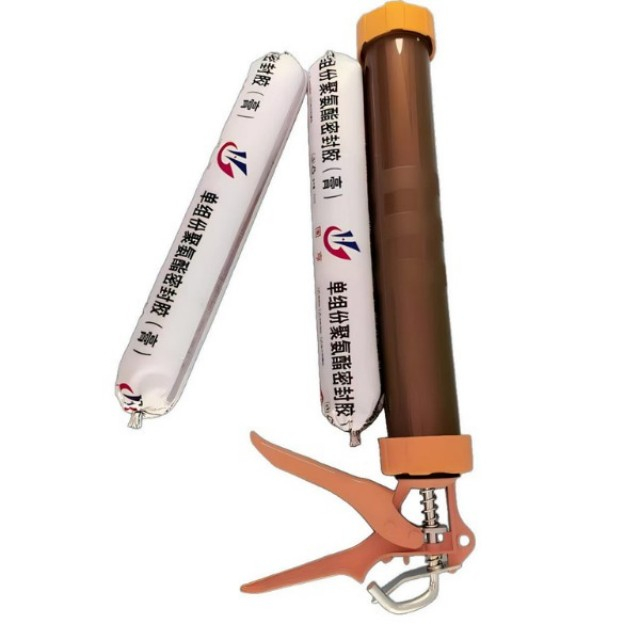

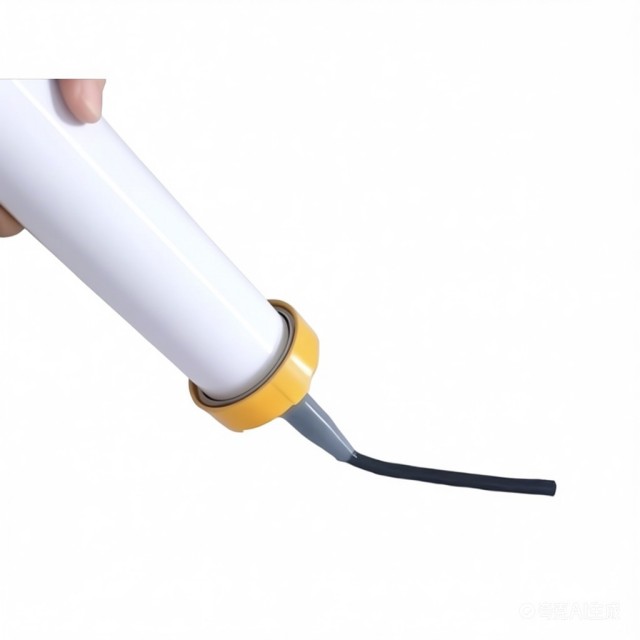

Non-Sag Type: Apply into the joint using a caulking gun or spatula, then compact and smooth.
Self-Leveling Type: Pour into horizontal joints; it will level naturally.
Curing: Protect the applied sealant from water or contamination until fully cured. Curing time is influenced by temperature and humidity.
Cleanup: Uncured material can be removed from tools using specialized solvents. Cured material requires mechanical removal.
Packaging and Storage

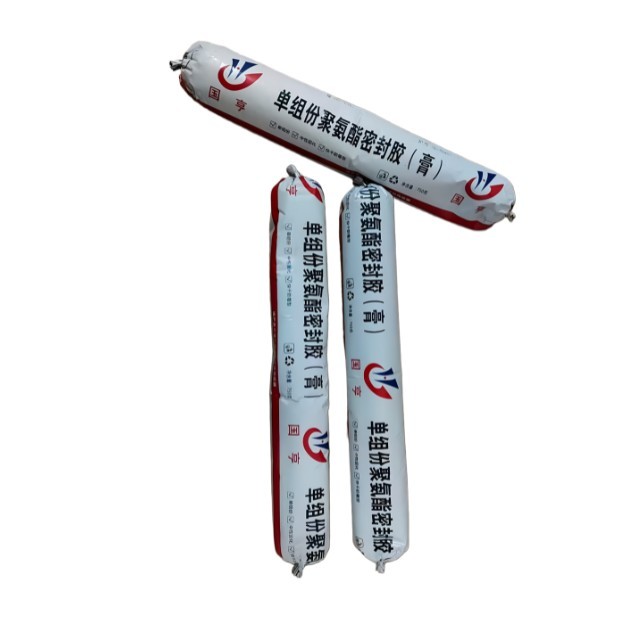

Packaging Specifications: Various packaging forms are available based on user requirements.
Storage Conditions: Store in a cool, dry place away from direct sunlight.
