Sealing Mechanism And Long Term Performance of Water Swellable Waterstop Strips

Construction joints, cold joints, and areas around pipe penetrations in concrete structures are the main paths for groundwater intrusion. Traditional sealing methods rely on external waterproofing layers or rigid filling materials, but under the influence of concrete shrinkage, settlement, and vibration, these locations are prone to developing fine cracks that form continuous leakage paths. Water swellable bars offer a proactive sealing approach: the material remains compact when dry, and once it comes into contact with water after installation, it expands to fill the joint void and generates sustained radial pressure to block water flow. Understanding the sealing mechanism and long term performance of this material is the prerequisite for using it correctly in engineering.

1. Sealing Mechanism of Water Swellable Waterstop Strips

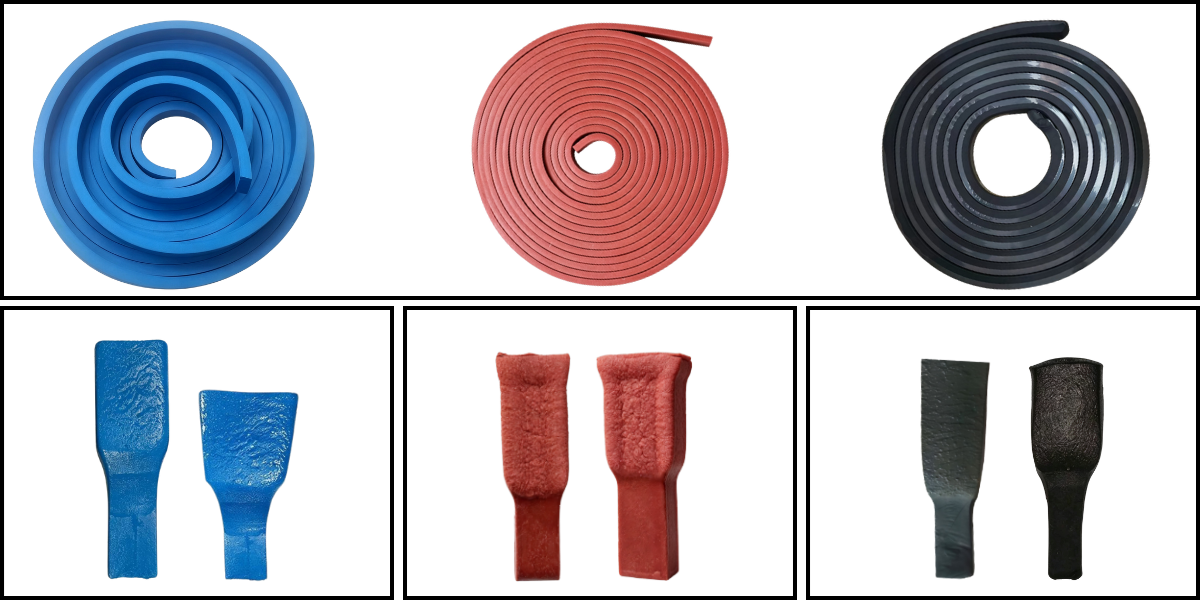

The sealing principle of water swellable bars is based on the hydration interaction between hydrophilic polymer materials and water molecules. The material contains a large number of hydrophilic groups internally. When the waterstop strip comes into contact with water, water molecules diffuse into the material matrix and combine with these hydrophilic groups, causing the molecular chain segments to extend and the volume to expand. This expansion is not simply water absorption and weight gain, but a confined expansion process: when the material expands within the joint space, it is restrained by the concrete interfaces on both sides, thereby generating sustained expansion pressure.

The formation of expansion pressure is the key to the sealing function of the waterstop strip. In a free state, the hydrophilic material can expand to several times its volume, but in a joint, the expansion is restricted, and the internal elastic stress gradually increases until close contact is formed with the concrete wall surface. When this contact pressure is significantly higher than the surrounding water pressure, water molecules cannot pass through the interface between the waterstop strip and the concrete. Unlike sealing materials that rely on adhesion or mechanical anchorage, a water swellable bar relies on the interface pressure generated by its own expansion, which gives it stronger adaptability to minor surface irregularities in the joint.

The speed and extent of hydration are closely related to the material formulation. Different hydrophilic group contents, crosslink densities, and filler systems determine the expansion rate, expansion ratio, and final expansion pressure of the waterstop strip. Some products expand rapidly after contact with water, suitable for situations requiring quick sealing; others are designed to swell slowly, allowing time for concrete pouring and curing, and avoiding premature expansion during the construction phase that could lead to failure. This formulation level adjustability enables water swellable bars to adapt to different engineering conditions.

2. Key Parameters and Influencing Factors of Expansion Performance

When evaluating a water swellable bar, several parameters usually need to be considered. These parameters do not exist in isolation but interact with each other, jointly determining the suitability of the waterstop strip under specific working conditions.

• Expansion Ratio: The multiple by which the volume of the waterstop strip expands in a free water absorption state, serving as a basic indicator of expansion capacity. A higher expansion ratio means stronger ability to fill gaps, but an excessively high ratio may generate excessive expansion pressure, creating adverse lateral forces on the surrounding concrete. In engineering, a moderate range is usually selected based on joint width and confinement conditions.

• Expansion Rate: The time characteristic for the waterstop strip to reach a stable expansion state after contact with water. Fast swelling bars produce noticeable volume increase within hours, suitable for leak repair scenarios requiring rapid sealing. Slow swelling bars are designed to expand gradually over a longer period, making it easier to position and pour concrete in construction joints, and reducing the risk of premature expansion.

• Expansion Pressure: The pressure generated by the waterstop strip on the confining surfaces when it expands in a restricted space. This is an important indicator for evaluating sealing effectiveness. Only when the expansion pressure continuously exceeds the surrounding water pressure can the waterstop strip form a reliable watertight barrier. The magnitude of expansion pressure is related to material formulation, confinement stiffness, and expansion ratio.

• Wet Dry Cycle Stability: In long term service, the waterstop strip may experience alternating wet and dry conditions due to water level changes. The water absorption expansion and dehydration shrinkage of the material should be reversible and repeatable. After multiple cycles, it should still maintain a high expansion ratio and pressure recovery ability, which is the foundation of long term sealing performance.

• Chemical Stability: Groundwater may contain acids, alkalis, salts, and other chemicals. The waterstop strip material needs to remain chemically inert in common groundwater environments, without losing expansion capacity or degrading due to media erosion.

3. Long Term Performance and Durability

The long term performance of a water swellable bar depends on the combined performance of the material under sustained water pressure, wet dry cycling, and chemical media exposure. Free expansion ratio in laboratory conditions only reflects the initial expansion capacity of the material; in actual engineering, more attention should be paid to pressure retention under confinement and aging resistance.

Under sustained water pressure, the waterstop strip needs to maintain sufficient expansion pressure over the long term to resist water pressure. Some hydrophilic materials may experience stress relaxation after prolonged immersion, with expansion pressure gradually decreasing. High quality water swellable bars can maintain a high pressure retention rate under long term water absorption through proper crosslink density and filler systems. At the same time, the material should have low permeability after water absorption to prevent water molecules from penetrating through the body of the waterstop strip and forming a leakage path.

The influence of wet dry cycles on the waterstop strip is mainly reflected in repeated volume changes and stress adjustments. Seasonal changes in groundwater level or water level fluctuations during construction can cause the waterstop strip to undergo multiple cycles of water absorption expansion and dehydration shrinkage. If the gel structure of the material is damaged during repeated cycling, the expansion ratio and elastic recovery ability will gradually decline. Therefore, wet dry cycle stability is one of the key indicators for evaluating the durability of waterstop strips.

Chemical environment is also a factor affecting long term performance. In coastal areas, groundwater contains relatively high chloride ion levels, and some industrial sites may have acidic or alkaline media. The chemical groups of hydrophilic materials may undergo hydrolysis or degradation in specific media, leading to a decline in expansion capacity. When selecting, the product formulation with corresponding chemical stability should be chosen based on the water quality analysis results at the project location.

In addition, protection during the construction phase has a direct impact on the long term performance of the waterstop strip. If the waterstop strip encounters water and expands before concrete pouring after installation, it will occupy the joint space and reduce subsequent expansion pressure. Therefore, construction organization should reasonably arrange the pouring time to avoid rainwater immersion or construction water immersion. For situations where early contact with water cannot be avoided, slow swelling products can be selected, or a temporary isolation layer can be placed on the surface of the waterstop strip.

4. Performance Matching and Selection Considerations in Engineering Applications

The performance of a water swellable bar can only be fully realized when it matches the specific engineering conditions. Different types of joints, different water pressure conditions, and different construction schedules require targeted configuration of the waterstop strip in terms of expansion ratio, expansion rate, and cross sectional dimensions.

In construction joints, the waterstop strip is usually installed on the surface of the first pour of concrete, and forms a seal after the subsequent concrete cover is placed. This type of scenario requires a moderate expansion rate, avoiding premature swelling due to contact with humid air or curing water before the subsequent concrete is poured. The cross sectional dimensions should be selected based on joint width and cover thickness, ensuring that the waterstop strip can fill the reserved joint space after expansion without generating excessive lateral pressure on the concrete on both sides.

At nodes such as pipe penetrations and pile head perimeters, the shape and size of the waterstop strip need to match the pipe diameter or pile diameter. These locations have limited space and require high flexibility and conformability from the waterstop strip. A hydrophilic rubber waterstop strip can be wrapped around the pipe surface and expand radially upon contact with water, sealing the annular gap between the pipe and concrete. At this point, the direction of expansion pressure is perpendicular to the pipe wall, and the additional stress on the pipe material should also be included in the design check.

In leak repair projects, fast swelling bars can be used to seal cracks or joints that are actively leaking. Locations with higher water pressure may require the use of grouting or other measures in combination. At this time, the expansion rate and initial adhesion of the waterstop strip will directly affect construction efficiency and water stopping effectiveness.

During the selection process, it is recommended to compile information such as project overview, joint type, expected water pressure, construction time window, and water quality conditions, and communicate with the supplier's technical team. Based on the product series and measured data, the supplier can provide recommendations for matching expansion parameters and cross sectional specifications. Test reports for performance parameters and engineering case studies can serve as auxiliary references for judgment, but final selection still needs to be comprehensively evaluated based on the project's own conditions.

The value of a water swellable bar lies in the fact that it uses the material's own expansion behavior to address a long standing challenge in concrete joint sealing: how to form sustained and reliable interface pressure within a confined space. Understanding the hydration expansion mechanism, the relationship between expansion parameters, and the factors influencing long term performance helps avoid making judgments based on a single parameter during selection. For different joint types and construction conditions, matching the expansion ratio, expansion rate, and cross sectional configuration is the key to ensuring that the waterstop strip delivers the expected sealing effect in actual projects. Only by systematically aligning project conditions with product performance data can this proactive sealing material maintain stable waterproofing capability over long term service.
