The financial impact of a failed construction joint waterstop exponentially outweighs the initial material procurement. Excavation, structural repair, and project delays quickly consume profit margins. A compromised seal causes severe water damage remediation that halts job site progress. Contractors and procurement teams face significant risks daily. They deal with vague material specifications, incompatible profiles, and unverified suppliers. These issues directly lead to concrete structure leaks and compliance failures.
Mitigating these risks requires a systematic approach. You must evaluate project requirements, verify material data, and rigorously vet manufacturers. Doing this before finalizing purchase orders is non-negotiable. When ordering rubber waterstops, success depends on treating the material as an engineered system rather than an afterthought. We will explore how to align materials with specific environments, validate sizing formulas, and anticipate installation realities on the job site.
Align Material with Environment: Base rubber selection strictly on chemical exposure, temperature fluctuations, and anticipated hydrostatic pressure, rather than default legacy specifications.
Validate Sizing and Profiles: Ensure the rubber waterstop size and profile (e.g., centerbulb vs. dumbbell) mathematically align with concrete thickness and expected joint movement.
Vet Supplier Quality Control: Prioritize suppliers providing verifiable ASTM test data, batch traceability, and clear vulcanization/splicing support.
Anticipate Installation Realities: Factor site-specific challenges—such as securing the waterstop against displacement during concrete pours—into the initial order (e.g., requesting factory-punched grommets).
Establish baseline performance requirements before engaging suppliers. You cannot order sealing materials based on guesswork or outdated project templates. Hydrostatic pressure ratings dictate your absolute baseline. Calculate the maximum water head the joint will endure over its lifespan. One foot of water generates roughly 0.433 psi of pressure. A 30-foot deep elevator pit or retaining wall faces constant, massive hydrostatic force at the base. Select a construction joint waterstop designed to withstand that specific pressure without bypassing. Water pressure forces the rubber against the concrete interface. If the profile lacks sufficient depth or ribbed surface area, water eventually finds a path around the barrier.
Next, analyze joint movement dynamics. Differentiate clearly between static construction joints and dynamic expansion joints. Static joints experience minimal shifting after the concrete cures. Dynamic joints require specific shear and elongation capabilities to survive. The rubber must stretch, compress, and handle transverse shear as the concrete slabs expand and contract with temperature changes. A parking garage deck exposed to direct sunlight expands significantly during the day and contracts at night. Settlement also introduces vertical shear forces that rigid materials cannot survive. The elastomer must accommodate these multi-directional forces without tearing.
Identify environmental and chemical exposure risks. Aggressive elements in the surrounding environment dictate the required rubber compound. Standard elastomers fail quickly when exposed to harsh chemicals. Wastewater alkalinity degrades standard rubber compounds over time. Hydrogen sulfide gas in digester tanks attacks incompatible materials. Petrochemicals, aviation fuel, and agricultural runoff dissolve standard elastomers upon contact. Ozone exposure causes surface cracking on exposed joints. Match the rubber compound to the exact chemical and environmental exposure risks present on your specific site.
Interpreting technical data sheets prevents catastrophic joint failures. You must know how to read and verify rubber waterstop specifications before approval. Look closely at tensile strength, ultimate elongation, and hardness. Compare these figures directly against your project engineering requirements. High tensile strength, measured via ASTM D412, ensures the material resists tearing under physical stress. Adequate elongation allows the joint to move and stretch without rupturing the seal. Shore A hardness, measured via ASTM D2240, indicates the material's resistance to indentation. If the Shore A rating is too low, the material folds over during the concrete pour. If it is too high, it will not compress properly against the concrete under pressure.
Understand the operational differences between natural rubber and synthetic elastomers. Natural Rubber (SBR) works well for standard water containment structures. It handles high movement effectively and offers excellent elasticity. It remains highly vulnerable to certain chemicals and oils. Neoprene (CR) is mandatory for harsh industrial environments. Specify Neoprene when dealing with sewage treatment plants, oil containment areas, or industrial chemical exposure. EPDM offers superior resistance to ozone, UV radiation, and extreme temperature variations. Choose EPDM for exposed applications or structures built in highly variable climates.
Evaluate the trade-offs between hydrophilic and non-swelling profiles. Traditional physical barrier waterstops block water mechanically. Swelling rubber strips expand upon contact with moisture to fill the joint gap. Hydrophilic options seem easier to install because they require no embedment. They possess strict limitations in cyclical wet/dry environments. Repeated swelling and shrinking degrades the hydrophilic material over time. It eventually dries out, cracks, and loses its ability to expand. Physical barriers provide permanent, predictable performance regardless of moisture cycles or changing water tables.
Elastomer Material Comparison for Waterstops
| Material Type | Primary Strength | Chemical Resistance | Best Application |
|---|---|---|---|
| Natural Rubber (SBR) | High elasticity and recovery | Low (vulnerable to oils/solvents) | Standard water treatment, reservoirs |
| Neoprene (CR) | Excellent chemical tolerance | High (resists oils, sewage, acids) | Wastewater plants, industrial facilities |
| EPDM | Ozone and UV resistance | Moderate (resists weathering) | Exposed joints, extreme climates |

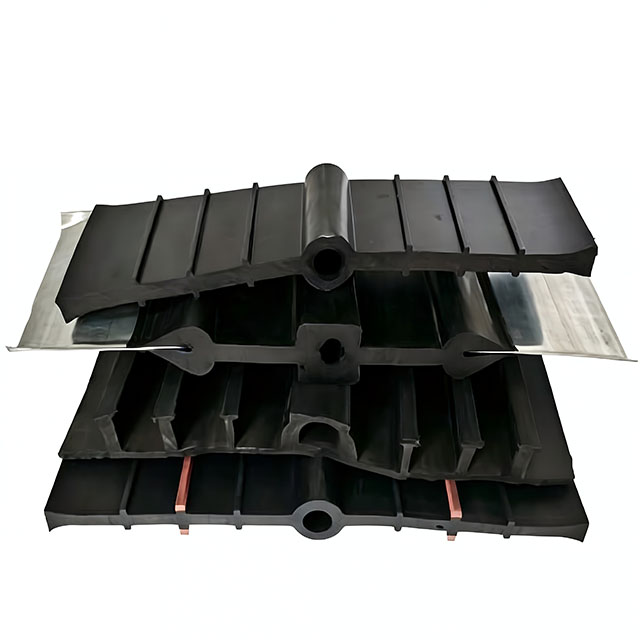

Profile selection depends entirely on the joint type and expected movement. Centerbulb profiles are essential for active expansion joints. The hollow center bulb accommodates lateral, transverse, and shear movement simultaneously. It compresses and expands without tearing the embedded side flanges. Dumbbell profiles suit standard construction and contraction joints perfectly. Use them where concrete movement remains minimal. The solid, thickened ends anchor firmly into the concrete, creating a tight mechanical seal against static water pressure.
Apply standard sizing formulas to your concrete thickness. The rubber waterstop size should never exceed the thickness of the concrete wall or slab. A 9-inch profile does not belong in an 8-inch wall. Calculate proper embedment depth carefully. Adequate concrete cover prevents spalling during freeze-thaw cycles. Ensure the centerbulb diameter matches the specified joint gap width. A bulb too large gets crushed during concrete expansion. A bulb too small fails to span the gap during maximum concrete contraction.
Measure the total thickness of the concrete wall or slab.
Determine the maximum aggregate size used in the concrete mix design.
Select a profile width that is at least six times the size of the largest aggregate to prevent honeycombing.
Calculate the required embedment depth, ensuring at least half the profile width (minus the centerbulb) sits firmly in the first concrete pour.
Match the centerbulb outer diameter to the maximum expected joint gap width.
Leverage manufacturer engineering support before finalizing your order. Submit your actual project design conditions directly to the factory. Provide the joint gap width, expected hydrostatic head, and chemical exposure data. Ask the manufacturer's technical team for a formal size and profile recommendation. This ensures optimal material selection based on real-world physics. It aligns your procurement with the manufacturer's tested capabilities, reducing the risk of specifying an incompatible profile.
Standard profiles do not fit every construction scenario. You must identify the need for customization early in the planning phase. Scenarios requiring non-standard profiles include retrofitting existing concrete structures. Joining dissimilar materials, such as tying a new clarifier tank into a 30-year-old existing concrete wall, demands unique shapes. Extreme seismic movement often exceeds standard profile capabilities. In these cases, you need a custom rubber waterstop engineered specifically for those extreme movement parameters.
Complex intersections present another major installation challenge. Never attempt complex, high-risk field fabrications on site. Field-welding crosses, tees, and L-joints often results in immediate leaks. Trying to miter-cut a 9-inch centerbulb profile at a 45-degree angle on a muddy job site guarantees failure. The angles are too sharp, and field vulcanization temperatures remain inconsistent. Order factory-fabricated intersections instead. Factories use precision heavy steel molds and controlled heat to create seamless, full-strength joints. You simply splice the straight runs into these factory corners on site, drastically reducing the risk of failure.
Factor lead time and cost trade-offs into your project schedule. Custom die creation takes time. Prototyping and approval processes add weeks to the procurement cycle. Plan these delays into the schedule when ordering custom profiles. The upfront delay prevents massive rework later. Rushing a standard profile into a non-standard joint guarantees future water infiltration.
Assess manufacturer capabilities thoroughly before requesting quotes. Ensure the concrete waterstop supplier offers a full range of materials. Look for PVC, bentonite, hydrophilic, and various rubber compounds in their catalog. Suppliers with comprehensive lines provide objective recommendations. They do not push a single available material just to make a quick sale. Benchmark their products against Tier-1 industry standards. Request project-specific, independent ASTM compliance reports. Compare this test data against established industry benchmarks to validate their physical performance claims.
Sourcing from a rubber waterstop manufacturer China offers distinct unit cost advantages. Weigh these advantages against extended shipping lead times and import logistics. Import logistics require careful planning to avoid job site delays. Verify factory credentials rigorously. Request physical material samples to test flexibility and shore hardness. Bend the sample aggressively. If it cracks or smells heavily of cheap filler, reject it. Ensure the manufacturer handles direct vulcanization in their own facility. Avoid middlemen who simply repackage inferior goods. Direct manufacturers control the compound quality, extrusion process, and final testing.
Evaluate the complete procurement package beyond the per-foot price. Consider the availability of technical support during the installation phase. Check if the supplier provides clear shop drawings for custom intersections. Assess their responsiveness to technical queries regarding chemical compatibility. A supplier who cannot quickly produce an ASTM D412 tensile strength report is not a reliable partner for critical infrastructure projects.
Site splicing and vulcanization equipment require advance planning. Rubber profiles cannot be glued together with construction adhesive. You cannot simply overlap them and hope the concrete holds them tight. They must be thermoplastically spliced or vulcanized. Ensure your supplier provides compatible splicing irons. Ask for heating molds and unvulcanized rubber gum. If they do not supply these tools, ask for specific brand recommendations. Having the right rubber but the wrong splicing tools halts the entire concrete pour. The splicing iron must maintain a consistent temperature, usually around 380°F to 410°F, to properly melt the gum without scorching the elastomer.
Securing the profile during pours is your next major hurdle. Displacement during heavy concrete placement causes future leakage. When the pump truck operator drops a 5-inch hose directly over the joint, the concrete free-falls with immense force. The material folds over under the weight of wet concrete, creating a direct path for water. Mitigate this risk during the initial procurement phase. Specify factory-punched edge holes or grommets on the outer flanges. Order compatible hog rings and tie wire at the same time. Tie the flanges securely to the reinforcing steel cage every 12 inches. This keeps the profile dead-center and perfectly vertical during the pour.
Request Technical Data Sheets (TDS) and Material Safety Data Sheets (MSDS) from shortlisted vendors to verify chemical compatibility.
Order physical material samples to verify flexibility, shore hardness, and exact profile dimensions before approval.
Submit your joint gap width and hydrostatic pressure data to the vendor for formal profile verification.
Confirm lead times for factory-fabricated intersections and custom splicing tools before issuing the purchase order.
A: The overall width should never exceed the thickness of the concrete slab. A reliable field rule is to use a profile width at least six times the size of the largest aggregate in your concrete mix. You must also ensure adequate concrete cover over the embedded flanges. This prevents surface spalling during freeze-thaw cycles. Always match the centerbulb diameter to your expected joint gap width.
A: PVC profiles are rigid, easy to weld on-site, and work well for static joints with zero movement. Rubber profiles offer superior elasticity, recovery, and shear resistance. You must use rubber for dynamic expansion joints experiencing significant movement, high hydrostatic pressure, or extreme temperature fluctuations. Rigid PVC will crack or shear under those specific dynamic stresses.
A: You cannot glue or overlap these materials. They require thermoplastic vulcanization. You must use a specialized heated splicing iron, an alignment mold, and unvulcanized rubber gum. Crews heat the square-cut ends, press them together with the gum layer, and allow the joint to cure. This creates a continuous, watertight seal that matches the original tensile strength of the extrusion.
A: Your documentation must detail the exact elastomer type, required tensile strength, ultimate elongation percentage, and Shore A hardness. You should also specify the exact profile shape, overall width, and web thickness. Always mandate factory-fabricated intersections for crosses and tees to prevent field-welding failures on the job site.
A: Standard profiles often ship within days. Custom profiles require new die creation, prototyping, and engineer approval. This adds two to four weeks to production time. International shipping and customs clearance can add another four to six weeks. Always factor these extended lead times into your project schedule before finalizing the purchase order.
A: Unverified suppliers often use recycled tire fillers to cut production costs. This leads to premature material degradation, poor elongation, and rapid chemical breakdown. The result is a catastrophic joint leak. Fixing this requires extensive excavation, structural epoxy injection, and severe project delays. Verifying independent ASTM test data prevents these structural failures.
